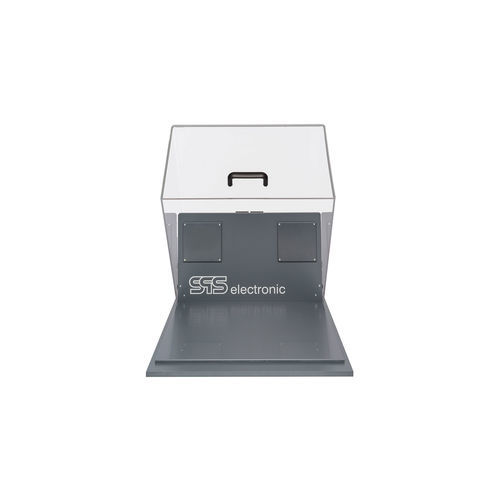

Desktop enclosure HB 3400A

rectangularacrylicPVC

Product overview
DUT enclosures are suitable for test-station equipment requiring protection against accidental contact according to EN 50191. The enclosure prevents contact with the device under test during the generation of hazardous voltages. Opening the enclosure causes the hazardous voltage to be forcibly disconnected.

Features

• Max. DUT dimensions: 500 x 200 x 350 mm (WxHxD)
• Pivoting acrylic glass hood with damper
• Body made of PVC (color: RAL 7011)
• Designed for light DUTs and small quantities
• CE-compliant design in accordance with EN 50191
• OEM version includes integrated safety limit switches (safety logic not included)

Variants / Options

• Design variant: OEM version HB 3400A
• Connection sets and cut-off relay variants for specific testers: For HA 6680U (BS 21-t with cut-off relay HB 3400T); For S 6600U and S 6700U (BS 76-r with cut-off relay HB 3400R); For HA 188x, ST 6600 (Connection kit BS 21-e with safety relay HB 3400E); For S 1802 (connection set BS 56-q with cut-off relay HB 3400Q); For KT 1886 and KT 1880 (connection set BS 33-f with safety relay HB 3400F)
• Connection in the hood options: Basic adapter with 10 banana sockets (type BA 18); 1 socket according to national standard plus 6 banana sockets (type BA 00) with selectable outlet types (EU Type E / BA00, US / BA00, I / BA00, CH / BA00, UK / BA00, AUS / BA00)
• Warranty extension option available (to 24 months)

Characteristics / technical specifications

• Model / series: HB 3400
• Variant / SKU: HB 3400A (OEM version shown on page)
• Brand: SPS electronic
• External dimensions (WxHxD): 590 x 370 x 780 mm
• Maximum DUT dimensions (WxHxD): 500 x 200 x 350 mm
• Housing material: PVC
• Housing color: RAL 7011
• Hood material and type: Acrylic glass, pivoting hood with damper
• Included safety features (OEM version): integrated safety limit switches; safety logic not included
• Compliance: CE-compliant design in accordance with EN 50191
• Intended use: Protection against accidental contact during high-voltage testing of DUTs; suitable for light DUTs and small quantities
• Release / page metadata: releaseDate 2026-08-06
• Price (page): 2185 EUR (net)
