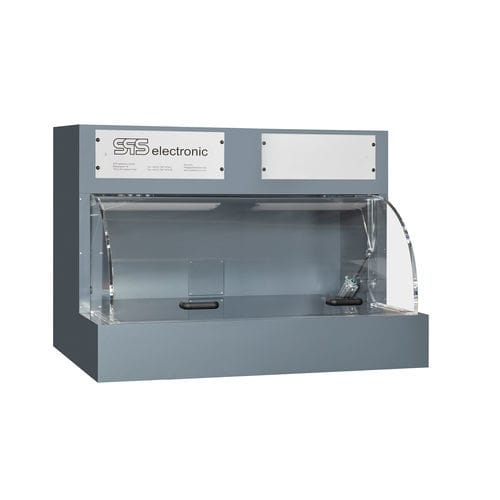

Desktop enclosure HB 6000A

rectangularacrylic glasstest

Product overview
DUT enclosures are suitable for test-station equipment requiring protection against accidental contact in accordance with EN 50191. The enclosure prevents touching the DUT while hazardous voltages are present; opening the enclosure triggers forced disconnection of hazardous voltage.

Key features

• Max. DUT dimensions: 700 x 300 x 400 mm (WxHxD)
• Pivoting acrylic-glass hood with damping cylinder
• Housing material: PVC, colour RAL 7011
• For very large DUTs in medium quantities
• Equipment compartment: 2 x 19'' / 5 HU for test instruments
• CE-compliant design according to EN 50191

Additional details

• Scope of delivery (OEM version): integrated safety limit switches; safety logic not included
• Optional: solenoid interlock ZH 61 / ZH 66
• External dimensions (WxHxD): 1,200 x 900 x 880 mm

Usage
Designed to protect operators from accidental contact with hazardous voltages during testing; opening the enclosure forces automatic shutdown of hazardous voltage.

Technical specifications

• Model (SKU / variant): HB 6000A
• External dimensions (WxHxD): 1,200 x 900 x 880 mm
• Maximum DUT dimensions (WxHxD): 700 x 300 x 400 mm
• Housing material: PVC
• Housing colour: RAL 7011
• Cover: pivoting acrylic-glass hood with damping cylinder
• Equipment compartment: 2 x 19'' / 5 HU
• Standards: CE-compliant design according to EN 50191
• Scope of delivery (OEM version): integrated safety limit switches (no safety logic)
• Optional accessories: solenoid interlock ZH 61 / ZH 66
• Release date: 2026-08-06
