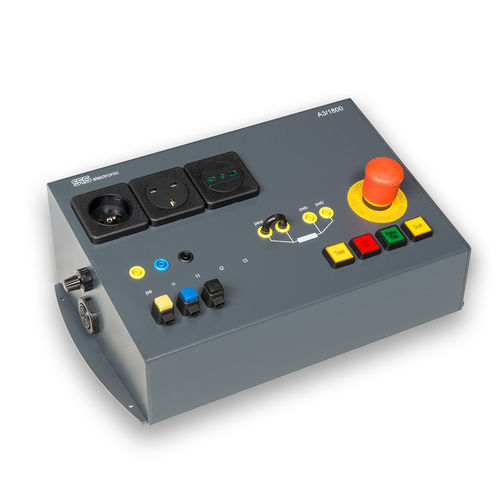

Control panel A3/1800-B

It often makes sense to optimize the workplace design at test stations in the production of electrotechnical / electronic products. In practice, there are two basic types: Consoles for electrical connection via sockets and/or terminals or laboratory sockets and consoles for electrical connection and operation. For use under hazardous voltages, our product range also includes connection and control panels with safety 2-hand operation. The individual elements, sockets and lights on our connection consoles are fitted individually according to your requirements and can also be retrofitted. Dimensions: 350 x 130 x 230 mm (WxHxD) PVC console housing 3 sockets according to country standard EU, I, US for DUT connection 2 free slots can be assigned for additional sockets according to country standard Banana sockets for DUT connection Quick-pressure terminals for DUT connection High-current socket for PE 81-i ground bond test probe Push-buttons, lights, emergency stop CE-compliant design in accordance with EN 50191 For all appliances in the KT 1886B / KT 1880B series (safety-limited appliances)
