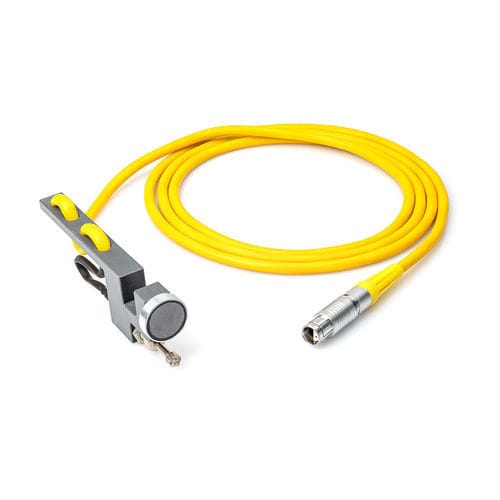

Electrical power supply connector PE 25-I

circularwith surge protectionprofessional

Description
The PE 25-I is a magnetic protective earth connector that provides a fast, tool-free contact to protective earth via a magnetic housing connection and integrates a high-current plug ST 04-i. Engineered for professional electrical test and measurement setups, it supports secure low-loss current transmission and is rated for demanding dielectric tests.

Key advantages

• Quick magnetic connection to the housing – reduces setup time and operator errors
• Rated dielectric strength and test voltages up to 1,500 VDC for verified electrical safety
• Integrated high-current plug ST 04-i for continuous high-load applications
• Standard 2 m connection cable with configurable lengths to suit test benches and fixtures

Technical specifications

• Brand: SPSelectronic
• Model: PE 25-I
• SKU / Product ID: 0194eeb3c958733ead6c04318c427872
• Magnetic protective earth connection on housing
• Maximum operating voltage (DC): 1,500 VDC
• Test voltage – connection to start switch: 1,500 VDC
• Test voltage – contour to connection: 1,500 VDC
• Integrated high-current plug: ST 04-i
• Connection cable: 2 m (standard)
• Optional cable lengths (extra): 5 m (KL 05) — additional €60.00; 10 m (KL 10) — additional €108.00; 15 m (KL 15) — additional €156.00
• Warranty extension: optional extension to 24 months available (surcharge applies)
• Net price indicated: 312.00 EUR

Applications

• Electrical safety testing, production and R&D test benches, laboratories, service and maintenance operations
