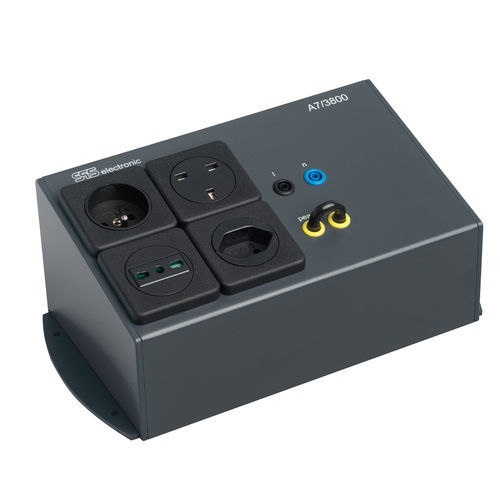

Multi-channel control panel A7/3800-a

electric

It often makes sense to optimize the workplace design at test stations in the production of electrotechnical / electronic products. In practice, there are two basic types: Consoles for electrical connection via sockets and/or terminals or laboratory sockets and consoles for electrical connection and operation. For use under hazardous voltages, our product range also includes connection and control panels with safety 2-hand operation. The individual elements, sockets and lights on our connection consoles are fitted individually according to your requirements and can also be retrofitted. Dimensions: 250 x 112 x 150 mm (WxHxD) PVC console housing 2 sockets according to EU, US country standard for the DUT connection 2 free slots can be assigned for additional sockets according to country standard Banana sockets for DUT connection High-current socket for PE 81-i ground bond test probe CE-compliant design in accordance with EN 50191 For all appliances in the LG 1800B / LG 1805B series (safety current limited appliances)
