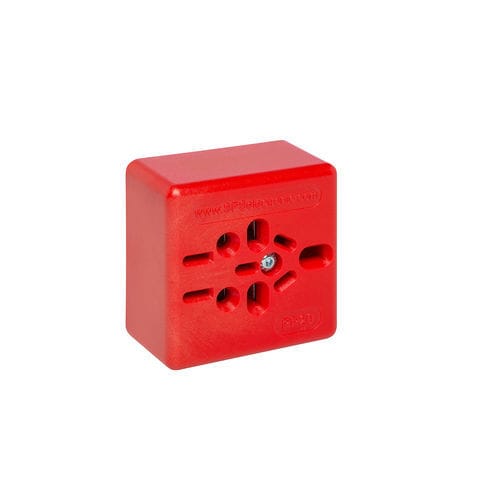

Test socket PP 20.6

Overview
Universal test socket for devices without protective earth/ground connection (protection class II). Designed for end-of-line testing in production lines of electrical and electronic products. The PP 20 universal test socket allows connection via a single socket in the test area, replacing multiple country-specific sockets and saving space. Suitable for testing most national plug standards.

Key features

• Supports many different national plug standards
• Intended only for devices without protective earth (protection class II)
• Maximum rating: 400 VAC / 16 A

Additional information

• Housing made of impact-resistant plastic for compact installation
• Wear-parts kit available to replace electrical wear components for long-term use
• Optimised solution for high-volume end-of-line testing

Technical specifications

• Model family: PP 20 series
• Displayed variant / SKU: PP 20.6
• Protection class: II (no protective earth/ground)
• Maximum voltage: 400 VAC
• Maximum current: 16 A
• Material: impact-resistant plastic
• Application: end-of-line / production testing for multiple national plug standards
• Maintenance: wear-parts kit available
