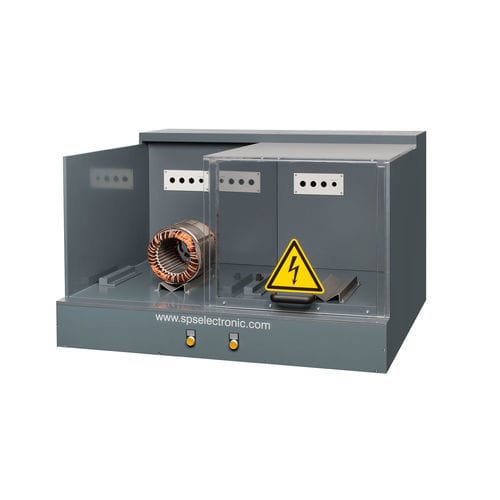

Desktop enclosure TK 7000A

rectangularacrylic glassPVC

Overview DUT enclosures are designed for test-station equipment requiring forced protection against accidental contact in accordance with EN 50191. The enclosure prevents contact with the device under test while dangerous voltages are present and triggers an automatic shutdown as soon as the hood is opened. The tandem design provides two identical test areas to maximise throughput: one station can be tested while the other is loaded or unloaded.

Scope of delivery Built-in safety limit switches for both test stations are included. Safety logic/controllers are not included and must be supplied separately.

Key features

• Max. DUT dimensions: 500 x 450 x 680 mm (WxHxD)
• Sliding acrylic glass hood for safe access and visual inspection
• Two equivalent test areas for high-volume testing (tandem configuration)
• CE-compliant design according to EN 50191

Additional product details

• Housing material: PVC (color: RAL 7011)
• Sliding acrylic glass hood
• Built-in safety limit switches included for both stations (safety logic not included)
• External dimensions (WxHxD): 1,070 x 659 x 1,000 mm
• Test chamber / Max. DUT dimensions (WxHxD): 500 x 450 x 680 mm

Technical specifications

• Model / SKU: TK 7000A
• Brand: SPS electronic
• CE conformity: EN 50191
• Material / housing: PVC, RAL 7011
• Hood: sliding acrylic glass hood
• Safety: built-in safety limit switches included (safety logic not included)
• External dimensions (WxHxD): 1,070 x 659 x 1,000 mm
• Test chamber / Max. DUT dimensions (WxHxD): 500 x 450 x 680 mm
• Release date (meta): 2026-08-07
• Net price (meta): 8,786 EUR
