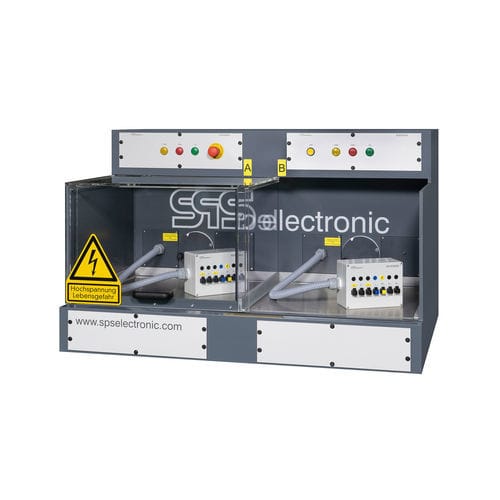

Desktop enclosure TK 6000A

rectangularacrylic glassPVC

Product description
DUT enclosures are designed for test-station equipment that requires protection against accidental contact in accordance with EN 50191. The enclosure prevents access to the DUT while hazardous voltages are present. Opening the enclosure enforces an immediate disconnection of hazardous voltage. The tandem design provides two identical test areas, enabling parallel loading/unloading and inspection to maximize throughput in high-volume testing. Built-in safety limit switches are included; safety logic is not supplied.

Key features

• Max. DUT dimensions: 568 x 400 x 580 mm (WxHxD)
• Sliding acrylic glass hood
• Equipment compartment: 2 x 19'' / 3 HU for test equipment
• Two equivalent test areas for high quantities (tandem design)
• CE-compliant design in accordance with EN 50191
• PVC housing, color RAL 7011
• Scope of delivery: safety limit switches for both test stations (safety logic not included)
• External dimensions: 1,200 x 740 x 910 mm (WxHxD)

Technical specifications

• Brand: SPS electronic
• Commercial name: Tandem DUT enclosure TK 6000
• Article / SKU: TK 6000A
• Product ID / internal reference: 018e74d7ed30710e88d8a2093165b578
• Net price (listed): 10,689.00 EUR
• Release date: 2026-08-06
• Max. DUT dimensions (WxHxD): 568 x 400 x 580 mm
• Test chamber dimensions (WxHxD): 568 x 400 x 580 mm
• External dimensions (product text): 1,200 x 740 x 910 mm (WxHxD)
• Alternative meta dimensions: width 880 mm, height 900 mm, depth 1,200 mm
• Equipment compartment: 2 x 19'' / 3 HU for test equipment
• Housing material / color: PVC housing, RAL 7011
• Cover: sliding acrylic glass hood
• Safety: built-in safety limit switches included (safety logic not included)
• Design compliance: CE-compliant according to EN 50191
