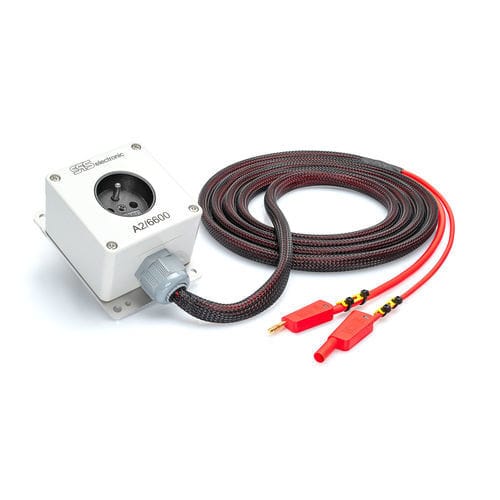

Wall-mounted junction box A2/6600-p

PVCconnectionhigh-voltage

Overview The A2/6600-p connection box was developed for professional use in electrical and testing technology to provide a compact, standards-compliant solution for connecting devices with protective-earth (Protection class I). Its form factor and connection set are designed for straightforward integration into test benches and measurement setups.

Key features

• For DUTs with protective-earth connection (Protection class I)
• Mains connection of the DUT via socket according to national standard (selectable country-specific sockets available)
• PVC housing
• Equipped with 4 mm laboratory connectors and high-voltage ST 14 plug
• Connection cable length: 1.5 m
• Compact dimensions and mounting plate for easy installation

Details Dimensions of the box (81 x 58 x 82 mm) and mounting plate (81 x 113 mm) enable space-saving installation in test systems. The mains socket can be supplied in country-specific variants to meet local regulations. The connector set (4 mm laboratory connectors and ST 14 high-voltage plug) supports secure, repeatable connections in high-voltage testing environments.

Technical specifications

• Brand: SPSelectronic
• Model / designation: A2/6600-p
• Protection class: for devices with protective earth (Protection class I)
• Housing material: PVC
• Dimensions (W x H x D): 81 x 58 x 82 mm
• Mounting plate size (W x D): 81 x 113 mm
• Connection cable: 1.5 m
• Outputs/connectors: 4 mm laboratory connectors; high-voltage plug ST 14
• Mains socket: according to national standard (selectable country-specific sockets available)
