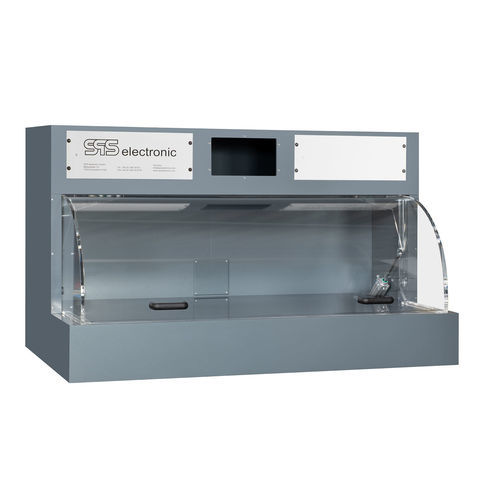

Desktop enclosure HB 7000A

rectangularacrylic glasstest

Overview
DUT enclosures are designed for test-station equipment where mandatory protection against accidental contact per EN 50191 is required. The enclosure prevents touching the test object while dangerous voltages are generated. When the enclosure is opened, the hazardous voltage is forcibly switched off.

Key features

• Max. DUT dimensions: 1200 x 300 x 400 mm (WxHxD)
• Pivoting acrylic hood with damping cylinder
• Housing material: PVC (color: RAL 7011)
• Intended for very large DUTs at medium production quantities
• Equipment compartment: 2 x 19'' / 5 HU for test instruments
• CE-compliant design in accordance with EN 50191

OEM scope

• OEM version HB 7000A: delivery includes integrated safety limit switches; safety logic not included

Options

• Solenoid interlock available (type ZH 61 / ZH 66)
• Connection-in-hood options (examples): basic adapter with 10 banana sockets (type BA 18); 1 national-standard socket + 6 banana sockets (type BA 00); selectable national socket outlets (EU, US, I, CH, UK, AUS) and related adapter kits
• Warranty extension option (e.g. to 24 months)

Technical specifications

• Model: HB 7000
• Variant / SKU: HB 7000A (OEM)
• Brand: SPS electronic
• Max. DUT dimensions (WxHxD): 1200 x 300 x 400 mm
• External dimensions (WxHxD): 1,500 x 900 x 880 mm
• Alternative page metadata dimensions: width 880 mm; height 900 mm; depth 1200 mm
• Housing material / color: PVC (RAL 7011)
• Hood: pivoting acrylic glass cover with damping cylinder
• Equipment compartment: 2 x 19'' / 5 HU for test devices
• Standards / Compliance: CE-compliant design in accordance with EN 50191
• OEM delivery: integrated safety limit switches included (no safety logic)
• Optional accessories: solenoid interlock ZH 61 / ZH 66; connection kits and adapters (BA 18, BA 00, national socket variants)
• Release date (page metadata): 2026-08-06
• Price on page (net amount): 11,957 EUR
