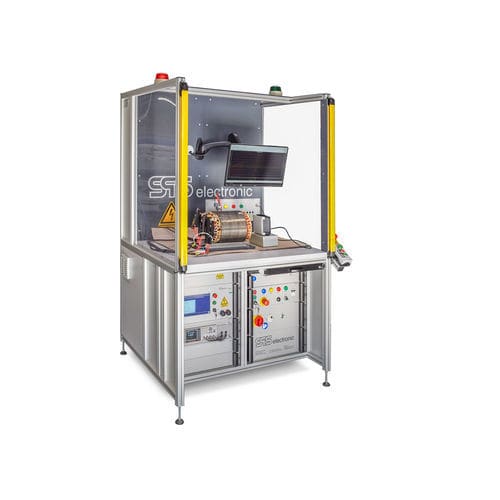

Test bench test chamber PK 7000AEuropean standards-compliantfloor-standingaluminum
Add to favorites
Compare this product
Characteristics
- Product applications
- for test benches
- Application domain
- European standards-compliant
- Configuration
- floor-standing
- Chamber material
- aluminum
- Interior length
1,010 mm
(39.76 in)- Interior height
945 mm
(37.2 in)- Interior depth
800 mm
(31.5 in)- External length
1,100 mm
(43.3 in)- External height
1,926 mm
(75.83 in)- External depth
1,150 mm
(45.28 in)
Description
Description
DUT enclosures are designed for test-station setups requiring mandatory protection against accidental contact in accordance with EN 50191. The integrated safety light curtain prevents access to the device under test while hazardous voltages are present; interruption of the light curtain triggers a forced shutdown. Compact handling and quick access make these enclosures suitable for medium-to-high volume testing operations.
Key features
Design variants / Options
Technical specifications
DUT enclosures are designed for test-station setups requiring mandatory protection against accidental contact in accordance with EN 50191. The integrated safety light curtain prevents access to the device under test while hazardous voltages are present; interruption of the light curtain triggers a forced shutdown. Compact handling and quick access make these enclosures suitable for medium-to-high volume testing operations.
Key features
- Max. DUT dimensions: 1,010 x 945 x 800 mm (WxHxD)
- Footwell offset to the rear
- Structure made of 40 x 40 mm aluminum profile
- Equipment compartment: 19'' / 16 U
- Fully insulated test chamber made of PVC (color: RAL 7011)
- PVC cladding (RAL 7011) and Makrolon panels
- Safety light curtain with 14 mm finger protection
- CE-compliant design in accordance with EN 50191
Design variants / Options
- OEM version PK 7000A (standard configuration)
- For HA 188X, ST 6600: connection set BS 22-g with safety relay PK 7000G
- For S 1802M: connection set BS 56-q with cut-off relay PK 7000Q
- For ST 4000: connection kit BS 66-s with safety relay PK 7000S
Technical specifications
- Product reference / SKU: PK 7000A
- Series / Model: PK 7000
- External dimensions: 1,100 x 1,926 x 1,150 mm (WxHxD)
- Test chamber dimensions: 1,010 x 945 x 800 mm (WxHxD)
- Structure: aluminum profile 40 x 40 mm
- Test chamber material: fully insulated PVC (RAL 7011)
- Cladding: PVC (RAL 7011) and Makrolon
- Equipment compartment: 19'' / 16 U
- Safety device: light curtain with 14 mm finger protection (forced shutdown on interruption)
- Compliance: CE-compliant design according to EN 50191
- Footwell: offset to the rear
