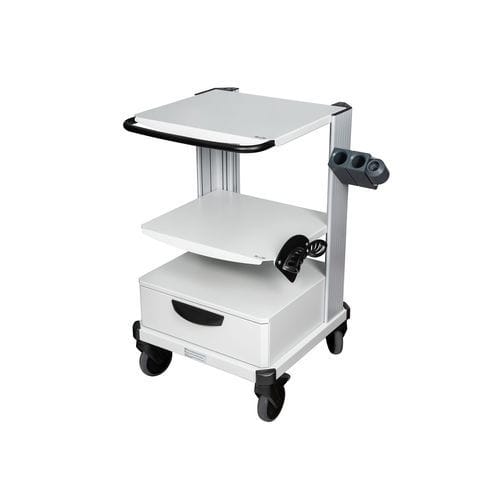

Wheeled carrier TW 05

platform

Description
The TW 05 equipment carrier is a modular, mobile trolley designed for safe transport and organized placement of test instruments in industrial production and laboratory environments. Powder-coated steel tabletops provide ample space for large devices while extruded aluminium profiles form a lightweight, durable frame. Smooth-running castors allow flexible positioning and movement on the shop floor or in test benches.

Key features

• Overall dimensions: 900 x 550 x 580 mm (HxWxD)
• Usable dimensions: 900 x 500 x 440 mm (HxWxD)
• Profiles: extruded aluminium bar profile, powder-coated
• Table top: sheet steel, powder-coated
• Handle: aluminium tube, powder-coated
• Load capacity (base frame): 2,200 N
• Load capacity per castor: 750 N
• Surface load per table top: 600 N

Accessories (optional)

• HL 02 Holder for high-voltage test probes SP 02 / SP 03 (option)
• HL 81 Holder for PE 81‑i ground bond test probe (option)
• KH 01 Cable holder (option)

Characteristics / Technical specifications

• Model name: TW 05
• Overall dimensions (HxWxD): 900 x 550 x 580 mm
• Usable dimensions (HxWxD): 900 x 500 x 440 mm
• Profiles material: extruded aluminium, powder-coated
• Table top material: sheet steel, powder-coated
• Handle material: aluminium tube, powder-coated
• Load capacity (base frame): 2,200 N
• Load capacity per castor: 750 N
• Surface load (per table top): 600 N
• Optional holders and cable management accessories available (HL 02, HL 81, KH 01)
• Release date: 2026-08-06
• Brand: SPS electronic
