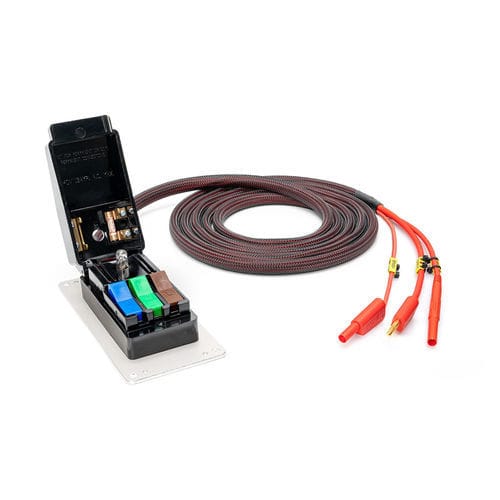

Connection junction box A9/6600-s

high-voltage

Description
The A9/6600-s connection box is a compact connection interface for devices under test (DUT) requiring protective earth (protection class I). It provides mains connection for the DUT via three manual terminals and is designed for custom test setups that require direct, individual wiring. Measuring 60 x 50 x 130 mm (W x H x D), the enclosure is space-saving and suited to both mobile and stationary test environments.

Features

• For DUT with protective earth connection (protection class I)
• DUT mains connection via 3 manual terminals
• Dimensions: 60 x 50 x 130 mm (W x H x D)
• Connections: 4 mm laboratory (banana) plugs and high-voltage connector ST 14
• Connection cable length: 1.5 m

Applications and benefits
The A9/6600-s enables precise, direct wiring in special test configurations and supports testing under high-voltage conditions through the ST 14 connector. Its compact size simplifies integration into test rigs and portable setups while the 4 mm laboratory plugs allow standard laboratory connectivity.

Technical specifications

• Model: A9/6600-s
• Brand: SPSelectronic
• Protection: Protective earth connection (protection class I)
• Mains connection: 3 manual terminals for DUT mains
• Plugs/connectors: 4 mm laboratory plugs; high-voltage connector ST 14
• Connection cable: 1.5 m
• Dimensions (W x H x D): 60 x 50 x 130 mm
• Intended use: mobile and stationary test setups; custom wiring applications
• Compatibility / variants: e.g. KT 6680U and S 6600U (A9/6600-s variant)
• SKU / product reference: A9/6600-s
