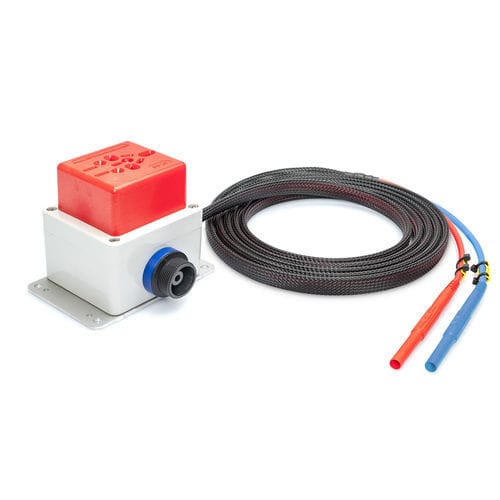

Wall-mounted junction box A4/6600-i

PVCconnection

Overview
The A4/6600-i connection box is designed for test devices without protective earth connection (Protection Class II). It provides a compact, internationally compatible connection solution for professional electrical test setups and is intended for use by electrical engineering and test-laboratory personnel.

Key features

• For DUT without protective earth connection (Protection Class II)
• Mains connection of the DUT via universal socket PP 20
• PVC enclosure for compact installation
• Dimensions 81 x 58 x 82 mm (W x H x D)
• Mounting plate 81 x 113 mm (W x D)
• 4 mm laboratory/banana connectors and high-voltage plug ST 14
• Connection cable length: 1.5 m
• High-voltage socket BU 02 for connecting a high-voltage test probe SP 02
• Universal socket PP 20 compatible with multiple international plug standards (see compatibility list)

Compatibility

• Universal socket PP 20 can be used for the following country plug standards: Australia, Austria, Brazil, China, Denmark, Germany, Great Britain, Hungary, Italy, Netherlands, New Zealand, Poland, Portugal, Spain, Sweden, Switzerland, Turkey, USA

Application and advantages
The compact PVC box integrates easily into existing test rigs where space is limited. A4/6600-i offers norm-compliant mains connection for Class II devices and practical interfaces for efficient laboratory workflows and service operations.

Technical specifications

• Model: A4/6600-i
• Protection class: Class II (for DUT without protective earth)
• Enclosure material: PVC
• Overall dimensions: 81 x 58 x 82 mm (W x H x D)
• Mounting plate dimensions: 81 x 113 mm (W x D)
• Mains socket: Universal socket PP 20 (multi-country compatibility)
• Connectors: 4 mm laboratory/banana connectors; high-voltage plug ST 14
• High-voltage socket: BU 02 (for SP 02 test probe)
• Connection cable: 1.5 m
• Manufacturer / Brand: SPSelectronic
