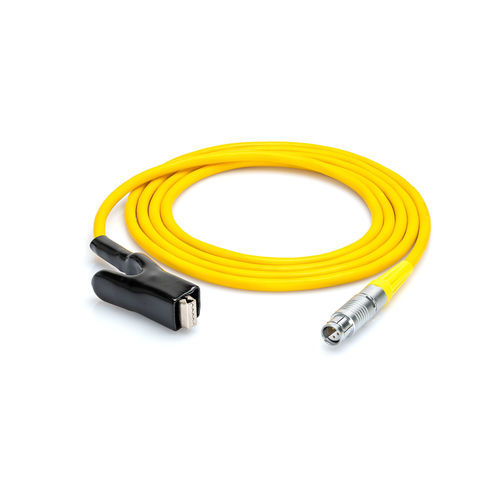

Alligator clip KL 89-I

Description
Special solutions are sometimes required to ensure efficient work at the test station. This crocodile clip assembly is designed for secure connection to the device under test and for use in high-voltage DC test environments.

Key features

• Crocodile clip for connection to the DUT
• Max. operating voltage (DC): 1,500 VDC
• Test voltage (connection — start switch): 1,500 VDC
• Test voltage (contour — connection): 1,500 VDC
• Equipped with high-current plug ST 04-i
• Connection cable 2 m long (standard)

Options

• Cable length options: 2 m (standard); 5 m (KL 05) — +€60.00; 10 m (KL 10) — +€108.00; 15 m (KL 15) — +€156.00
• Warranty extension: optional to 24 months (additional 4%)

Technical specifications

• Brand: SPSelectronic
• Model / Commercial name: KL 89-I
• Article number / SKU: KL 89-I
• Product internal ID: 0194eedf61a77167b9eeb121c040007c
• Max. operating voltage (DC): 1,500 VDC
• Test voltage (connection — start switch): 1,500 VDC
• Test voltage (contour — connection): 1,500 VDC
• High-current plug type: ST 04-i
• Connection cable: 2 m (standard) — optional 5 m / 10 m / 15 m
• Net price (listed): 129 EUR
• Release date: 2026-08-06
