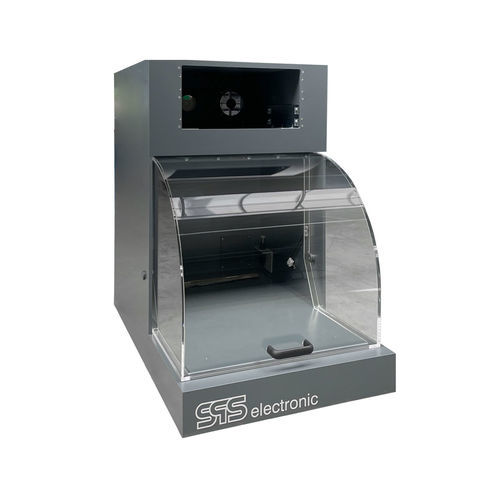

Desktop enclosure HB 5000A

rectangularacrylic glasstest

Overview
DUT enclosures are suitable for test stations requiring protection against accidental contact according to EN 50191. The enclosure prevents access to the device under test while hazardous voltages are present; opening the enclosure forces disconnection of hazardous voltage. The extra-wide enclosures with pivoting acrylic hood are intended for larger DUTs and medium quantities.

Main features

• Max. DUT dimensions: 580 x 350 x 700 mm (WxHxD)
• Pivoting acrylic hood with damper
• Housing made of PVC (RAL 7011)
• Integrated 19'' / 5 HU device compartment for holding test equipment
• CE-compliant design in accordance with EN 50191

Design & materials

• PVC housing (RAL 7011) with 19'' / 5 HU device compartment
• Pivoting acrylic glass hood with damper

Safety & scope of delivery

• OEM version includes integrated safety limit switches; no safety logic is included by default
• Optional solenoid interlock: type ZH 61 / ZH 66
• The enclosure disconnects hazardous voltage automatically when opened (EN 50191)

Options & connection variants

• Connection in the hood: basic adapter with 10 banana sockets (type BA 18) or socket + banana combination (type BA 00)
• Selectable socket outlet types: EU Type E, US, I, CH, UK, AUS (configurator options)
• Selectable connection sets / cut-off relay options for specific test instruments (e.g. connection sets for HA 6680U, KT 6680U/KT 6780H, HA 188X/ST 6600, S 1802M, ST 4000, KT 1886/KT 1880)
• Warranty extension option available (e.g. extension to 24 months)

Usage notes
Designed for larger test objects and medium quantities while ensuring operator protection during high-voltage tests. The OEM version provides integrated safety end switches; any required safety logic or additional interlocks must be selected as options or supplied externally.

Technical specifications

• Model designation: HB 5000A (OEM version shown)
• Maximum DUT dimensions (WxHxD): 580 x 350 x 700 mm
• External dimensions (WxHxD): 680 x 1,050 x 1,100 mm
• Housing material: PVC (RAL 7011)
• Cover material: acrylic glass (pivoting hood) with damper
• Device compartment: 19'' / 5 HU
• Safety: integrated safety limit switches included in OEM version; no safety logic included by default
• Optional safety interlock: solenoid interlock type ZH 61 / ZH 66
• CE compliance: design in accordance with EN 50191
• Typical connection options: BA 18, BA 00, multiple national socket types via configurator
• Manufacturer / Brand: SPS electronic
