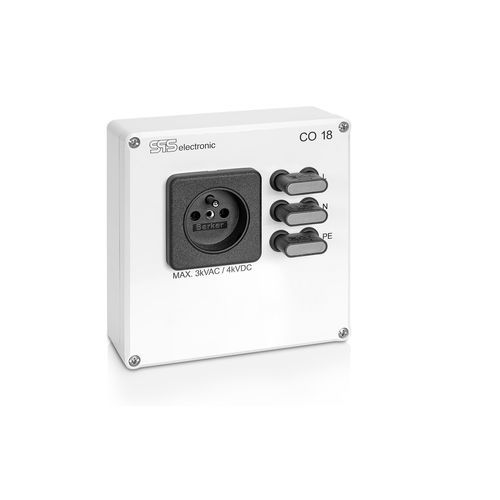

Leakage current tester CO 18

for plug socketslaboratory

Overview
The CO series test adapter enables flexible and replaceable connections between the device under test (DUT) and a basic adapter. Plug-in laboratory and high-current sockets protect the basic adapter from wear, making the CO 18 version suitable for continuous series testing and varying test requirements.

Detailed description
The Test Adapter CO is designed to connect the DUT to a compatible basic adapter (see compatibility on the product page). Its modular plug-in concept uses replaceable connection sockets so that the built-in basic adapter inside the test cover is not exposed to frequent plug cycles. Connection adapters can be swapped quickly after wear, ensuring uninterrupted series production and fast adaptation to different DUT types.

Key functional features

• Flexible DUT connection via national-standard socket or laboratory sockets
• Plug-in adapters available with up to two lab sockets for special measurement tasks
• Optional high-current socket (BU 04-i) for grounding/high-current connections
• Modular plug-in concept protects the basic adapter from high plug-cycle wear
• Easy replacement of test adapters for different DUT variants to maximize production uptime

Available variants / configurable options

• CO 18: Socket according to national standard (standard variant)
• CO 19: National-standard socket + 4 lab banana sockets (4 mm)
• CO 20: National-standard socket + BU 04-i (ground bond/high-current)
• CO 21: National-standard socket + BU 04-i + 4 lab banana sockets
• Customized configurations available on request

Country / socket standard options

• EU (European)
• US (United States)
• CH (Switzerland)
• AUS (Australia)
• I (Italy)

Optional services

• Warranty extension available (option to extend to 24 months)

Technical specifications

• Model / SKU: CO 18
• Series: CO series
• Brand: SPS electronic
• Compatibility: designed for use with corresponding basic adapters (see BA series compatibility on product page)
• Available sockets/accessories: national-standard socket, lab sockets (4 mm), high-current socket BU 04-i, banana sockets (4×) depending on variant
• Main application: continuous series testing, flexible DUT connections, quick replacement of connection adapters after many plug cycles
• Typical environments: production and test labs requiring frequent adapter changes and high plug-cycle resilience
• Displayed net price: 126 (currency shown separately)
• Available documentation: product datasheet (PDF)
