DC electronic load EA-ELR 11000-30 3U

multifunctionhigh-powerenergy recovery

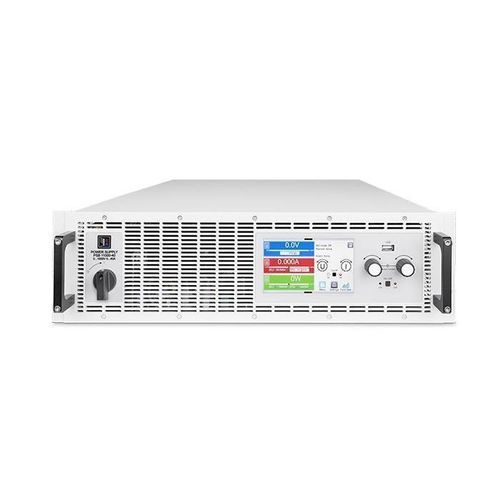

The EA-ELR 11000-30 3U is an industrial programmable DC electronic load with energy recovery, designed for testing DC power supplies, 24 V power supply units and programmable power systems in production and laboratory environments. It combines a compact 19-inch 3U rackmount format with high-performance energy recovery technology and multiple control interfaces for automated test setups.

Key features

• 10000 W rated power (derated to 6000 W at 208 V AC) with up to 95.5% energy recovery efficiency to feed consumed DC energy back to the mains.
• Programmable operation in CV, CC, CP and CR modes with voltage autoranging in CP mode for dynamic load simulation.
• Galvanically isolated analogue control (0–5 V and 0–10 V via 15‑pole D‑sub) and digital interfaces including Ethernet, USB, Profibus, Modbus; optional CANopen/EtherCAT via IF‑AB modules.
• Built-in function generator (sine, triangle, rectangular, trapezoidal and arbitrary waveforms up to 99 points) and Solar Panel MPP simulation for photovoltaic and inverter testing.
• 19-inch 3U rack housing with forced-air cooling (front inlet to rear outlet) and temperature-controlled fans; protections for OVP, OCP, OPP and OT; UL certified and UKCA approved.

Technical specifications

• Model: EA-ELR 11000-30 3U
• Output current: 0–30 A
• Output voltage: 0–1000 V
• Output power (rated): 10000 W (derated to 6000 W at 208 V AC)
• Energy recovery efficiency: up to 95.5%
• Operating modes: CV, CC, CP, CR (voltage autoranging in CP)
• Characteristic curve: U/I/P autoranging
• External control / Interfaces: Analogue 0–5 V / 0–10 V (galvanically isolated D‑sub 15), USB, LAN (Ethernet), Profibus, DeviceNet, RS232, CAN, Modbus; optional CANopen / EtherCAT via IF‑AB modules
• Human interface: Touch panel and menu
• Special features: Built-in function generator; Solar Panel MPP tracking; resistance mode
• Operating ambient: 0–50 °C (32–122 °F)
• Safety & EMC: EN 55011 Class B / CISPR 11 Class B; UL certified; UKCA approved; OVP/OCP/OPP/OT protections

Applications

• Testing and characterization of DC power supplies and 24 V supply units
• PV module, inverter and MPP testing without external equipment
• Automated production test benches and ATE integration
• R&D and laboratory validation of power electronics
