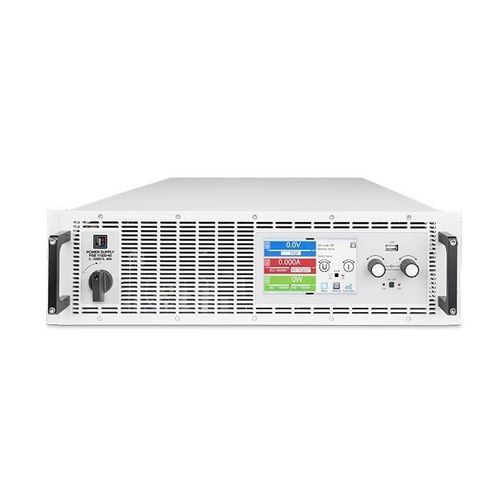

3U power supply EA-PSBE 10200-140 3UDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC
- Output
- regulated, variable-output, constant-current
- Network
- three-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Applications
- for industrial applications, laboratory, for automation
- Secondary function
- measuring device
- Other characteristics
- programmable, high-power, high-performance, digital, computer-controlled
- Input voltage
208 V, 380 V, 400 V, 480 V
- Output voltage
Max.: 200 V
Min.: 0 V
- Current
Max.: 140 A
Min.: 0 A
- Power
Max.: 10,000 W
Min.: 0 W
Description
Overview
Programmable DC power supply in a 3U 19-inch rack format by EA, designed for high-power industrial and test applications. Provides U/I/P autoranging and comprehensive external control interfaces for integration into automated test systems.
Key specifications
Control and interfaces
Features
Applications
Ordering information
Programmable DC power supply in a 3U 19-inch rack format by EA, designed for high-power industrial and test applications. Provides U/I/P autoranging and comprehensive external control interfaces for integration into automated test systems.
Key specifications
- Output voltage: 0-200 V
- Output current: 0-140 A
- Output power: 0-10000 W
- Form factor: 3U, 19-inch rack
- Characteristic curve: U/I/P autoranging
Control and interfaces
- Analogue control: 0-5 V / 0-10 V
- Digital/fieldbus: USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Human interface: Touch panel & Menu
Features
- Built-in function generator for dynamic test profiles
- Resistance mode for simulation and measurement
- Designed for seamless integration into automated test benches
Applications
- Power electronics test and development
- Battery simulation and testing
- Production test benches and automated test systems
- R&D and laboratory measurements
Ordering information
- Manufacturer: EA
- Article number: HEA3938
- Manufacturer code: 30000762
- Type / Model: EA-PSBE 10200-140 3U
Catalogs
EA-PSBE 10000 3U
15 Pages
