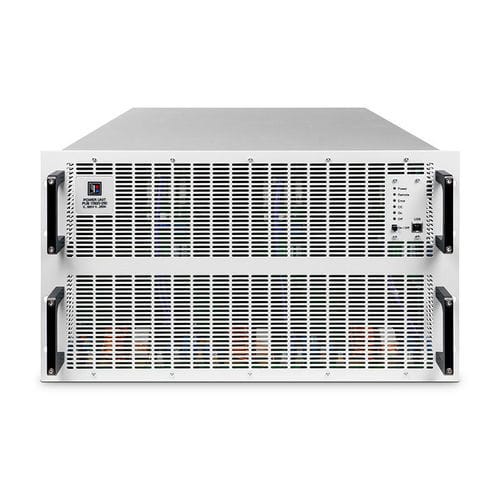

19" rack power supply EA-PUB 11000-160 6U 60000WDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 19" rack
- Type
- DC
- Output
- regulated, constant-current, variable-output
- Protection
- with current limiting, with overcurrent protection, with overload protection, with overheating protection
- Connection
- by cable, with USB outlet
- Applications
- test, laboratory, for industrial applications
- Other characteristics
- high-performance, regenerative, programmable, computer-controlled, digital, high-power, bi-directional
- Input voltage
Min.: 0 V
Max.: 0 V
- Output voltage
Min.: 0 V
Max.: 1,000 V
- Current
Min.: 0 A
Max.: 160 A
- Power
Min.: 60,000 W
(81.58 hp)Max.: 60,000 W
(81.58 hp)
Description
The EA-PUB 11000-160 is a programmable bidirectional DC power supply designed for laboratory and high-power test applications. It can operate as a precision DC source or as a regenerative electronic load, offering flexible control and robust protection features suitable for battery, fuel cell and inverter testing.
Key Features
Technical specifications
Key Features
- Bidirectional energy flow: Operates as both DC source and regenerative load with energy recovery to the grid.
- High efficiency: Up to 96.5% efficiency in source and sink modes.
- Wide voltage & current range: 0–1000 V and 0–160 A with autoranging for flexible operation.
- Programmable control: CV, CC, CP, CR modes with fast crossover; 16-bit digital regulation (ADC/DAC).
- Scalable system: Parallel operation up to 64 units for systems up to 3840 kW (Master-Slave / Share-Bus).
- Multiple interfaces: Built-in USB, Ethernet, analog I/O; optional CAN, Profinet, Modbus, EtherCAT, etc.
- Comprehensive protection: OVP, OCP, OPP, OT and remote sense compensation.
- Application ready: Suitable for battery test, fuel cell test, solar/PV inverter validation, on-board charger test and battery recycling applications.
Technical specifications
- Article Number: HEA6865
- Manufacturer Code: 01123015
- Manufacturer: EA
- Output Power: 60000 W
- Output Voltage: 0–1000 V
- Output Current: 0–160 A
- Type: 6U
- Characteristic curve: U / I / P autoranging
- External control: Analogue 0–5 V / 0–10 V, USB, LAN, Modbus TCP, Profibus, RS232, CAN
- Housing: 19" rack
- Human interface: Touch panel & menu
- Special feature: Function generator
