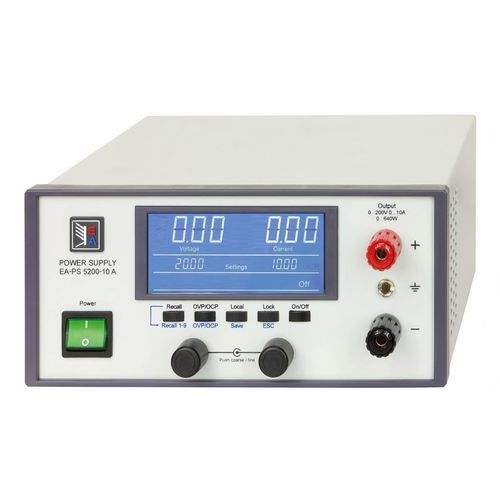

Benchtop power supply EA-PS 5200-10A

DCsingle-outputregulated

EA-PS 5200-10A 640W programmable desktop DC power supply
The EA-PS 5200-10A is a programmable desktop DC power supply from the EA-PS 5000 A series. It provides an auto-ranging high-voltage output and a wide universal AC input, and is designed for laboratory, test and industrial use.

Key features

• Wide global input range: 90-264 VAC, 45-65 Hz, active PFC (0.99) and high efficiency.
• High-voltage auto-ranging output: 0-200 V DC, 0-10 A DC, up to 640 W total output power.
• Precision and stability: <0.08% voltage load regulation, <0.02% voltage line regulation, <150 mV PP voltage ripple, <30 mV RMS voltage ripple, <1.5 ms load regulation time, <0.2% voltage accuracy.
• Current performance: <0.15% current load regulation, <0.02% current line regulation, <32 mA PP current ripple, <0.2% current accuracy; power accuracy <1%.
• Comprehensive protection: integrated OVP (overvoltage), OCP (overcurrent), OPP (overpower) and overtemperature protection.
• Local operation: blue LCD display, 9 preset memories, key lock and recall functions.
• Remote control ready: USB interface with LabView VIs and Windows control software for automation and integration.
• Cooling: temperature-controlled fan for efficient heat dissipation and low noise.
• Compliance: meets EN 55022 Class B; suitable for unattended continuous operation.

Technical specifications

• Output Current: 0-10 A
• Output Power: 0-640 W
• Output Voltage: 0-200 V DC
• Characteristic Curve: U/I flexiranging
• External Control: USB interface
• Housing: Desktop (table)
• Human Interface: simple manual controls (blue LCD, keys)
• Input Voltage: 90-264 VAC, 45-65 Hz
• Power Factor Correction: Active PFC, PF = 0.99
• Voltage Load Regulation: <0.08%
• Voltage Line Regulation: <0.02%
• Voltage Ripple: <150 mV PP, <30 mV RMS
• Load Regulation Time: <1.5 ms
• Voltage Accuracy: <0.2%
• Current Load Regulation: <0.15%
• Current Line Regulation: <0.02%
• Current Ripple: <32 mA PP
• Current Accuracy: <0.2%
• Power Accuracy: <1%
• Protections: OVP, OCP, OPP, overtemperature protection
• Memory/Control: 9 preset memories, key lock, recall function
• Cooling: temperature-controlled fan
• Dimensions: 200 x 87 x 331 mm
• Weight: 4.3 kg
• Software/Interfaces: USB, LabView VIs, Windows control software
• Article Number: HEA3589
• Manufacturer Code: 05100308
• Manufacturer: EA
