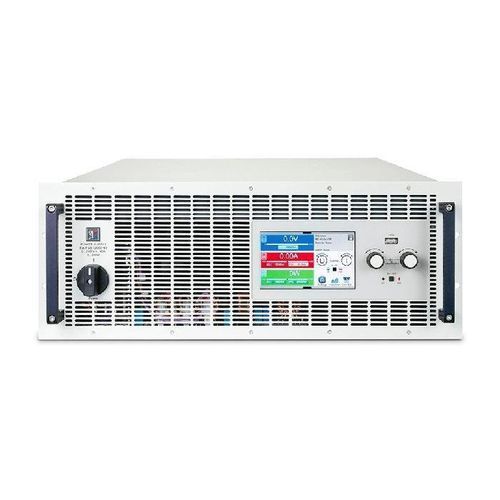

19" rack power supply EA-PS 10500-180 4UDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 19" rack
- Type
- DC
- Output
- regulated, variable-output, constant-current
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Applications
- for industrial applications, laboratory, test
- Secondary function
- battery charger
- Other characteristics
- programmable, high-power, digital, computer-controlled
- Input voltage
Min.: 208 V
Max.: 480 V
- Output voltage
Min.: 0 V
Max.: 500 V
- Current
Min.: 0 A
Max.: 180 A
- Power
Min.: 30,000 W
Max.: 30,000 W
Description
Overview
The EA-PS 10500-180 4U is a programmable DC power supply intended for high-power industrial and laboratory applications. It delivers adjustable output voltage and current with a maximum output power of 30,000 W and supports rack mounting in a 19-inch 4U chassis.
Applications
Technical specifications
Control & interfaces
Mechanical & human interface
The EA-PS 10500-180 4U is a programmable DC power supply intended for high-power industrial and laboratory applications. It delivers adjustable output voltage and current with a maximum output power of 30,000 W and supports rack mounting in a 19-inch 4U chassis.
Applications
- Test benches and production test systems
- Battery simulation and charging system testing
- Industrial equipment and research laboratory use
Technical specifications
- Article Number: HEA4078
- Manufacturer Code: 06230904
- Manufacturer: EA
- Output Voltage: 0-500 V
- Output Current: 0-180 A
- Output Power: 30000 W
- Type: 4U
- Characteristic Curve: U/I/P autoranging
Control & interfaces
- Analogue control: 0-5 V / 0-10 V
- Digital/fieldbus: USB, LAN, Modbus TCP, Profibus, RS232, CAN
Mechanical & human interface
- Housing: 19-inch rack, 4U
- Human Interface: Touch panel and menu
- Special Feature: Resistance
