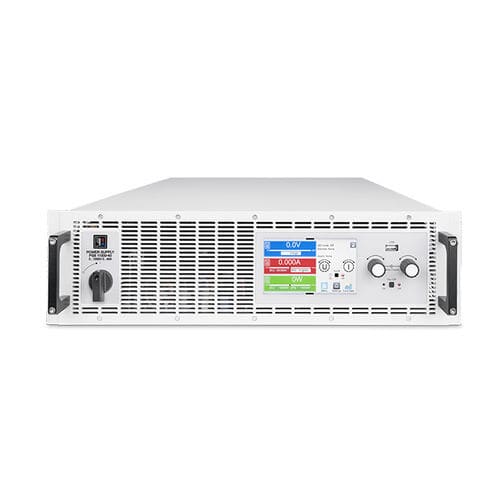

3U power supply EA-PSBE 10010-170 3U
AC/DCDC/DCsingle-output

3U power supply - EA-PSBE 10010-170 3U - TPS Elektronik GmbH - AC/DC / DC/DC / single-output
3U power supply - EA-PSBE 10010-170 3U - TPS Elektronik GmbH - AC/DC / DC/DC / single-output
Add to favorites
Compare this product
Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format
3U
Type
AC/DC, DC/DC
Output
single-output, regulated, stabilized, adjustable, constant-current
Technology
switching, PWM
Network
three-phase
Protection
with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection, with current limiting
Protection class
IP20
Certifications
CE, RoHS, UL
Connection
with USB outlet, with screw terminal block
Applications
for industrial applications, laboratory, test, for servo drive
Secondary function
battery charger, solar array simulator
Other characteristics
programmable, with power factor correction, wide input range, galvanically-isolated, bi-directional, fan cooled, high-accuracy, regenerative
Input voltage

208 V, 380 V, 400 V, 480 V

Output voltage

Min.: 0 V

Max.: 10 V

Current

Min.: 0 A

Max.: 170 A

Power

Min.: 0 W

Max.: 1,700 W

Description

Output Current - ±0-170A Output Power - ±1700W Output Voltage - 0-10V Type - 3U
