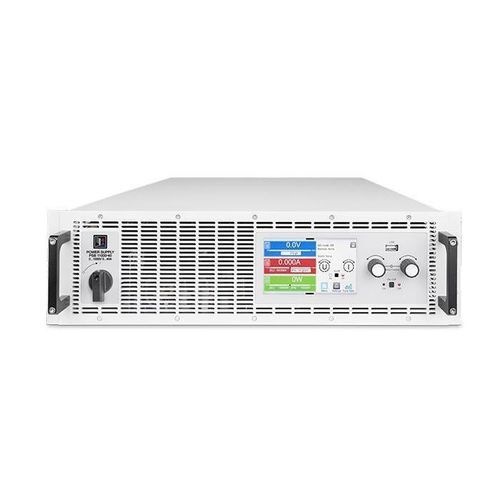

3U power supply EA-PS 10500-30 3UDCregulatedsingle-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC
- Output
- single-output, regulated, stabilized, variable-output
- Network
- three-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Applications
- for industrial applications, laboratory
- Secondary function
- battery charger
- Other characteristics
- programmable, high-power, digital, computer-controlled
- Input voltage
Max.: 480 V
Min.: 208 V
- Output voltage
Max.: 500 V
Min.: 0 V
- Current
Max.: 30 A
Min.: 0 A
- Power
Max.: 5,000 W
Min.: 5,000 W
Description
Overview
Key features
Technical specifications
Interfaces & integration
Typical applications
- Programmable DC power supply EA-PS 10500-30 3U offering autoranging of voltage, current and power for laboratory and industrial test systems. Rated 0-500V, 0-30A, 5000W, 3U rackmount.
Key features
- Autoranging characteristic curve (U/I/P).
- Programmable output with precise regulation and sequencing.
- Resistance mode for load emulation.
- Front-panel touch display with menu navigation.
Technical specifications
- Article Number: HEA4088
- Manufacturer Code: 06230933
- Manufacturer: EA
- Output Current: 0-30A
- Output Power: 5000W
- Output Voltage: 0-500V
- Type: 3U rackmount
- Characteristic Curve: U/I/P autoranging
- Special Feature: Resistance mode
Interfaces & integration
- Analogue inputs: 0-5V / 0-10V
- Digital/serial: USB, LAN, Modbus TCP, RS232, CAN
- Remote-control options suitable for automated test benches and system integration.
Typical applications
- R&D laboratories, electronics and power-electronics testing.
- Battery simulation and charging tests.
- Production test benches and automated measurement systems.
