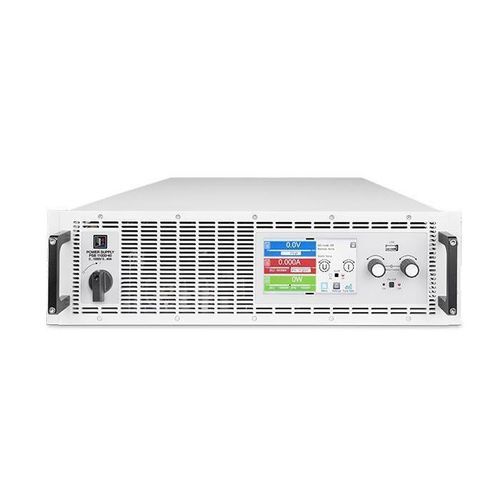

3U power supply EA-PSB 10080-170 3UDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC
- Output
- regulated, variable-output, constant-current
- Network
- three-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet, by cable
- Secondary function
- measuring device
- Other characteristics
- programmable, high-power, computer-controlled, liquid-cooled, 4-quadrant, bipolar
- Input voltage
Max.: 480 V
Min.: 208 V
- Output voltage
Max.: 80 V
Min.: 0 V
- Current
Max.: 170 A
Min.: 0 A
- Power
Max.: 5,000 W
Min.: 0 W
Description
The EA-PSB 10080-170 3U is a 3U programmable DC power supply delivering up to 0–80 V, ±0–170 A and ±5000 W, with autoranging and extensive external control interfaces. It is rack-mountable in 19" and offers a touch-panel user interface as well as optional water cooling for thermal management.
Characteristics / Technical specifications
Characteristics / Technical specifications
- Cooling: Water cooled (optional)
- Output Current: ±0-170 A
- Output Power: ±5000 W
- Output Voltage: 0-80 V
- Type: 3U
- Characteristic Curve: U/I/P autoranging
- External Control: Analogue 0-5V/0-10V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Housing: 19" rack
- Human Interface: Touch panel & Menu
- Special Feature: Function generator, Resistance measurement, Sink mode
