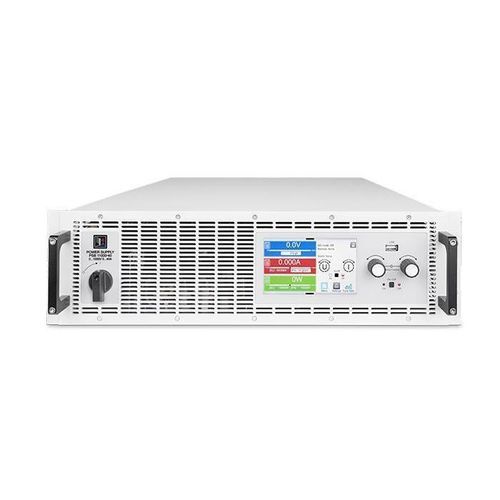

3U power supply EA-PS 10080-340 3UDCregulatedvariable-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC
- Output
- regulated, variable-output
- Network
- three-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Applications
- for industrial applications, laboratory
- Other characteristics
- programmable, high-power, digital, computer-controlled
- Input voltage
Max.: 480 V
Min.: 208 V
- Output voltage
Max.: 80 V
Min.: 0 V
- Current
Max.: 340 A
Min.: 0 A
- Power
Max.: 10,000 W
Min.: 10,000 W
Description
Programmable high-power DC power supply in a 3U form factor designed for 19" rack installation and laboratory or industrial applications. It provides U/I/P autoranging control, a touch-panel menu for local operation and multiple remote-control connectivity options.
Key features
Technical specifications
Key features
- Programmable DC power supply with U/I/P autoranging characteristic
- 3U form factor for 19" rack integration
- Local operation via touch panel and menu
- Multiple remote-control interfaces and analogue control inputs
- Suited for high-power and resistive-load applications
Technical specifications
- Output Power: 10000 W
- Output Voltage: 0–80 V
- Output Current: 0–340 A
- Type: 3U
- Characteristic Curve: U/I/P autoranging
- External Control: Analogue 0–5V / 0–10V, USB, LAN, Modbus TCP, RS232, CAN
- Housing: 19" rack
- Human Interface: Touch panel & menu
- Special Feature: Suitable for resistive loads
