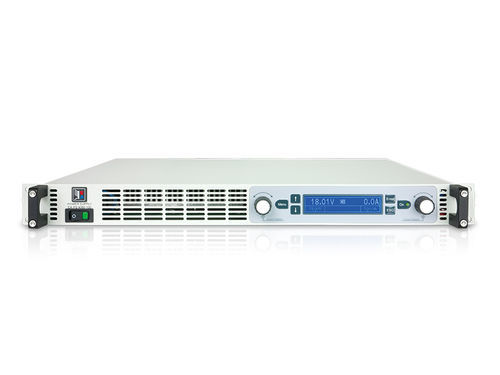

1U power supply EA-PS 9200-50 1U

DCRoHSCE

EA-PS 9200-50 1U 3000W Programmable DC Power Supply (Ordering Number: 06230406) The EA-PS 9200-50 1U is a microprocessor-controlled unit from the EA-PS 9000 1U series, designed for high-power scenarios such as laboratory testing, industrial aging tests, and R&D. This 3000W model provides 0-200V adjustable voltage and 0-50A variable current, both manually and remotely adjustable. Its compact 1U 19" rack design (19"x1Ux500mm) saves space. The control panel features rotary knobs, a blue LCD displaying values, status, and alarms, and a panel lock to prevent misuse. Performance highlights include up to 93% efficiency to reduce energy loss, active power factor correction (PF=0.99) for 180...264V AC grids (45...65Hz), and automatic derating to 2500W at <207V AC. Voltage accuracy is <0.1% (rated value), load regulation <0.05%, and current accuracy <0.2%. Low ripple ensures stability: 234 mV PP (HF)/40 mV RMS (LF) voltage ripple, 10 mA RMS current ripple. The autoranging output adjusts voltage/current to stay within the 3000W rating. Galvanically isolated multi-control interfaces include: 15-pole D-Sub analog (0-5V/0-10V signals), USB, and LAN (Ethernet, supporting SCPI/ModBus RTU). Compatible with LabView VIs, it includes "EA Power Control" software (Windows) for multi-unit management and supports remote sensing and parallel operation. Safety features (OVP/OCP/OPP/OTP) shut off output in case of anomalies; temperature-controlled fans provide cooling. The unit complies with EN 60950, EN 61326, and EN 55022 Class B standards, operates at 0...50°C (storage -20...70°C), and weighs approximately 11 kg, making it ideal for high-power laboratory and industrial applications. Key Features - 3000W High-Power Output: 0-200V adjustable voltage & 0-50A current (Ordering Number: 06230406). - 1U 19" Rack Design: 19"x1Ux500mm size fits lab/industrial 19" racks. - High Efficiency & Active PFC: ≤93% efficiency, PF=0.99 for 180...264V AC (auto-derates to 2500W at <207V AC). - Multi-Control Interfaces: 0-5V/0-10V analog, USB, LAN (supports SCPI/ModBus RTU), galvanically isolated. - High Precision & Low Ripple: Voltage accuracy <0.1%, ripple ≤234 mV PP/40 mV RMS; current ripple ≤10 mA RMS. - Autoranging Output: Adjusts voltage/current to stay within 3000W rated power. - Software Compatibility: Works with LabView VIs; includes "EA Power Control" (Windows). - Panel Lock & Blue LCD: Prevents misuse; LCD shows values/status/alarms. - Comprehensive Protection: OVP, OCP, OPP, OTP for safe operation. - Temperature-Controlled Cooling: Fans adjust speed to maintain optimal temperatures. Specifications - Output Current: 0-50A - Output Power: 3000W - Output Voltage: 0-200V - Type: 1U - Characteristic Curve: U/I/P autoranging - External Control: Analogue 0-5V/0-10V, USB, LAN - Housing: 19" rack - Human Interface: Graphic display & Menu - Special Feature: Resistance Legislation and Compliance - RoHS - CE - UL - WEEE - UKCA Technical Specifications (Summary) - Model: EA-PS 9200-50 1U - Power: 3000W - Output Voltage: 0-200V - Output Current: 0-50A - Efficiency: ≤93% - Power Factor: 0.99 - Ripple: ≤234 mV PP/40 mV RMS (voltage), ≤10 mA RMS (current) - Interfaces: Analog (0-5V/0-10V), USB, LAN (Ethernet, SCPI/ModBus RTU) - Dimensions: 19"x1Ux500mm - Weight: ~11 kg - Operating Temperature: 0...50°C - Storage Temperature: -20...70°C - Protections: OVP, OCP, OPP, OTP - Compliance: EN 60950, EN 61326, EN 55022 Class B, RoHS, CE, UL, WEEE, UKCA
