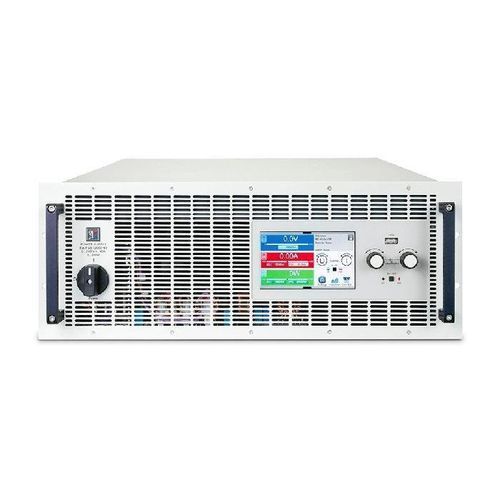

Water-cooled electronic load EA-ELR 12000-40 4U

energy recoverymultifunctionhigh-power

Overview

The EA-ELR 12000-40 4U is a programmable regenerative DC electronic load for comprehensive testing of DC power sources. It combines advanced arbitrary waveform generation, multiple operating modes and high-efficiency energy recovery for laboratory, R&D and production environments.

Key features

• Built-in arbitrary waveform generator: sine, triangle, rectangle, trapezoid, DIN 40839, arbitrary, ramp, and IU table functions.
• Dedicated battery charge/discharge and solar PV MPP test modes.
• Scalable master–slave operation with parallelization for larger systems and automatic current sharing.
• Operating modes: constant voltage (CV), constant current (CC), constant power (CP), constant resistance (CR) and autoranging U/I/P.
• Comprehensive protections: overvoltage, overcurrent, overpower, overtemperature, and power-fail.
• Flexible cooling: standard forced-air with optional water-cooling variant for demanding environments.

Technical specifications

• Article Number: HEA3599
• Manufacturer Code: 33200808
• Manufacturer: EA
• Output Current: 0-40 A
• Output Power: 30,000 W (30 kW)
• Output Voltage: 0-2000 V
• Type / Form Factor: 4U (19-inch rack)
• Characteristic Curve: U/I/P autoranging
• External Control / Interfaces: Analogue 0-5V / 0-10V, USB, LAN (Ethernet), Profibus, DeviceNet, RS232, CAN, Modbus
• Human Interface: Touch panel & menu
• Special Features: Function generator (arbitrary waveform), resistance mode, battery test mode, solar MPP tester
• Operating Modes: CV, CC, CP, CR
• Protection: OVP, OCP, OPP, OT, PF
• Scalability: Master-slave operation for parallelization
• Standards / Safety: Complies with relevant safety and EMC standards including EN 61010-1

Applications

• Battery pack charge/discharge characterization and lifecycle testing
• Solar PV module and inverter MPP testing
• Power supply validation, bench and programmable supply testing
• R&D, quality control and automated production test systems

Connectivity & control

• Local operation via touch panel and menu
• Remote control and monitoring via USB, Ethernet, analogue I/O and optional digital fieldbus modules (CANopen, RS232, Profibus, DeviceNet, Modbus)

Cooling & scalability

• Standard forced-air cooling; optional water-cooling for high-power or constrained environments
• Master-slave parallelization enables increased total system power with automatic current sharing and coordinated initialization

Protection & standards

• Multiple hardware and software protections to safeguard device and DUT
• Designed to meet industry safety and EMC requirements
