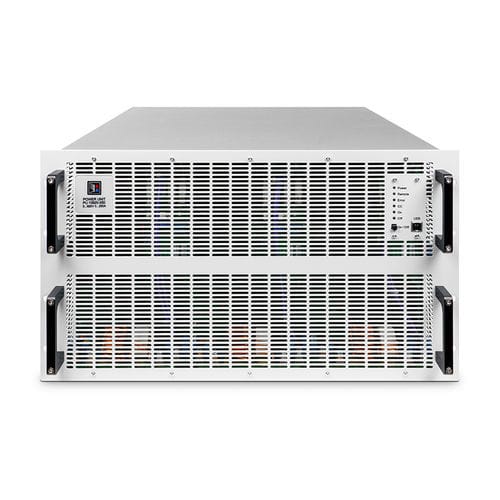

19" rack power supply EA-PU 10500-360 6U 60000W

DCconstant-currentregulated

The EA-PU 10500-360 is a high-performance programmable DC power supply in a 6U 19-inch rack form factor, engineered for industrial testing, simulation and production environments requiring up to 60 kW of DC power.

Key features

• Autoranging high-power output for flexible operating points across a wide voltage and current range.
• High efficiency up to 96.5% with active Power Factor Correction (typical PF 0.99) to minimize energy consumption and grid harmonics.
• Multiple regulation modes: Constant Voltage (CV), Constant Current (CC), Constant Power (CP) and Constant Resistance (CR) with fast, seamless crossover.
• Extensive connectivity: built-in USB, Ethernet and analog (DB15) interfaces; optional industrial interfaces (CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, Modbus).
• Scalable parallel operation via integrated Master-Slave and Share-Bus for easy paralleling of up to 64 units (system power up to 3,840 kW).
• User-adjustable protection functions including Overvoltage (OVP), Overcurrent (OCP), Overpower (OPP) and Overtemperature (OTP).
• Rugged, standards-compliant design: meets EN/IEC/UL 61010-1 safety, EMC Class A and features an IP20 enclosure with optional water cooling.

Applications

• Fuel cell and battery simulation
• Electrolysis power supply
• PV inverter testing and solar simulation
• Electric vehicle component testing
• Relay test systems and industrial laboratory/production tests

Technical specifications

• Series: EA-PU 10000 series
• Output Power: 60000 W
• Output Voltage: 0–500 V (autoranging)
• Output Current: 0–360 A (autoranging)
• Characteristic curve: U/I/P autoranging
• Efficiency: up to 96.5%
• Input: 3-phase AC 380–480 V ±10%
• External control / Interfaces: Analogue 0–5 V / 0–10 V, USB, LAN (Ethernet), Modbus TCP, Profibus, RS232, CAN (optional), CANopen (optional)
• Human interface: Touch panel and menu
• Housing: 19-inch rack (6U)
• Special feature: Built-in function generator
• Parallel operation: Master-Slave and Share-Bus up to 64 units (max. system 3,840 kW)
• Protections: adjustable OVP, OCP, OPP, OTP
• Output ripple: ≤ 70 mV RMS, ≤ 350 mVpp
• Measurement accuracy: Voltage ≤ 0.05% FS; Current ≤ 0.1% FS
• Compliance: EN/IEC/UL 61010-1; EMC Class A
• Ingress protection: IP20 (optional water cooling available)
• Article Number: HEA6845
• Manufacturer Code: 01113011
