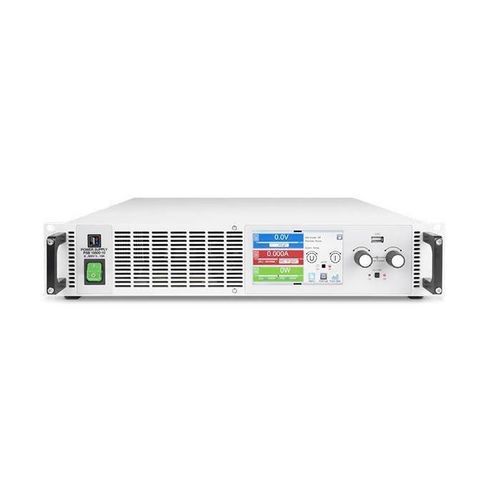

19" rack power supply EA-PSI 10500-10 2UDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 19" rack
- Type
- DC
- Output
- regulated, variable-output, constant-current
- Network
- single-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Other characteristics
- programmable, digital, computer-controlled, stand-alone, liquid-cooled
- Input voltage
Max.: 2,000 V
Min.: -72 V
- Output voltage
Max.: 500 V
Min.: 0 V
- Current
Max.: 10 A
Min.: 0 A
- Power
Max.: 1,500 W
Min.: 0 W
Description
The EA-PSI 10500-10 2U is a programmable 2U DC power supply delivering up to 1500 W with wide voltage and current ranges, designed for 19" rack integration and automated test systems.
Key features
External control and communication
Technical specifications
Key features
- Output voltage range: 0-500 V
- Output current range: 0-10 A
- Maximum output power: 1500 W
- Characteristic curve: U/I/P autoranging
- Human interface: Touch panel & Menu
- Special feature: Built-in function generator
- Housing: 19" rack (2U)
External control and communication
- Analogue control: 0-5 V / 0-10 V
- Digital / fieldbus interfaces: USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
Technical specifications
- Article Number: HEA4134
- Manufacturer Code: 06230844
- Manufacturer: EA
- Output Voltage: 0-500 V
- Output Current: 0-10 A
- Output Power: 1500 W
- Cooling: Water cooled (optional)
- Type: 2U
- Housing: 19" rack
- Characteristic Curve: U/I/P autoranging
- External Control: Analogue 0-5V/0-10V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Human Interface: Touch panel & Menu
- Special Feature: Function generator
