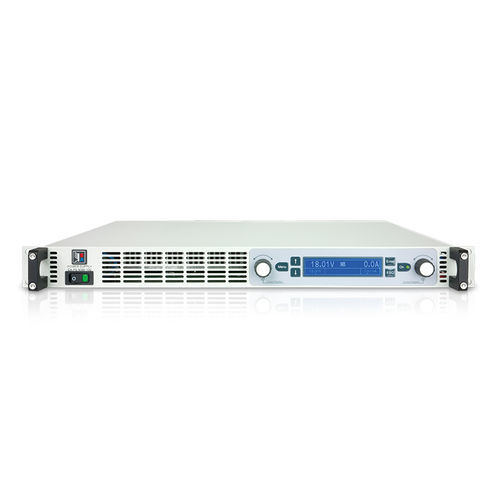

1U power supply EA-PS 9360-30 1U

DCvariable-outputsingle-output

The EA-PS 9360-30 1U is a programmable DC power supply for laboratory, R&D and industrial applications. It features a compact 1U 19-inch rack form factor, an autoranging output stage and comprehensive protection circuits, and is optimized for energy-efficient operation and remote programmability via isolated digital and analogue interfaces.

Key features

• Wide output range with autoranging U/I/P behaviour for flexible voltage/current/power operation.
• High efficiency (up to 93%) with active power factor correction (PFC) to reduce energy loss.
• Programmable remote control via galvanically isolated USB and LAN (Ethernet); supports SCPI commands and ModBus RTU; analogue inputs/outputs for local setpoint and monitoring.
• Comprehensive protections: overvoltage (OVP), overcurrent (OCP), overpower (OPP) and overtemperature (OTP).
• Compact 1U (44 mm) 19-inch rack form factor for space-saving test and bench setups.
• Parallel operation via share bus to increase total power output.
• User-friendly local interface with blue LCD graphic display, rotary knobs and pushbuttons.
• Integrated discharge circuit for safe output discharge after shutdown (output voltage falls below 60 V DC).

Technical specifications

• Manufacturer: EA
• Article Number: HEA4309
• Manufacturer Code: 06230407
• Model: EA-PS 9360-30 1U
• Output Voltage: 0 - 360 V
• Output Current: 0 - 30 A
• Output Power: 3000 W
• Characteristic Curve: U/I/P autoranging
• External Control: Analogue 0-5 V / 0-10 V, USB, LAN (Ethernet) – galvanically isolated; supports SCPI and ModBus RTU
• Housing: 19-inch rack
• Human Interface: Graphic display & menu (blue LCD), rotary knobs, pushbuttons
• Type / Height: 1U (44 mm)
• Special Feature: Resistive mode support
• Efficiency: up to 93% (with active PFC)
• Protections: OVP, OCP, OPP, OTP
• Additional functions: Remote sensing, share bus for parallel operation, discharge circuit (output < 60 V DC after shutdown)
