4U power supply EA-PSB 10920-125 4U
AC/DCDCmultiple-output

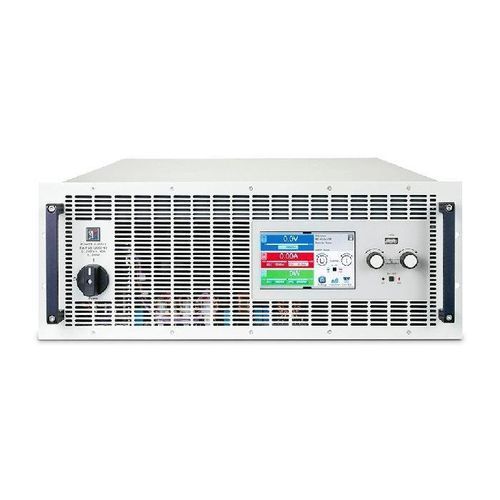

4U power supply - EA-PSB 10920-125 4U - TPS Elektronik GmbH - AC/DC / DC / multiple-output
4U power supply - EA-PSB 10920-125 4U - TPS Elektronik GmbH - AC/DC / DC / multiple-output
Add to favorites
Compare this product
Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format
4U
Type
DC, AC/DC
Output
multiple-output
Technology
switching
Network
three-phase
Protection
with overheating protection
Certifications
CE, RoHS, UL
Connection
with USB outlet
Applications
laboratory, test
Other characteristics
programmable, high-power, bi-directional, regenerative
Input voltage

Min.: 208 V

Max.: 480 V

Output voltage

Min.: 0 V

Max.: 920 V

Current

Min.: 0 A

Max.: 125 A

Power

30,000 W

Description

EA-PSB 10920-125 4U is a programmable bidirectional DC power supply and regenerative electronic load in a single 4U rack-mount unit, designed for laboratory, production and high-power test environments.

Overview
  • Combines source and sink functions in one device with advanced local and remote control options including a 5" color TFT touchscreen and multiple communication interfaces.
  • Designed for applications such as battery testing, photovoltaic and fuel cell simulation, power aging and other high-voltage test tasks.


Key Features
  • Bidirectional operation: Functions as both a high-precision DC power supply (source) and a recuperating electronic DC load (sink) with seamless sink-source switching.
  • Energy recovery (recuperation): Operates as a regenerative load to feed recovered energy back to the AC mains, with up to 96.5% recovery to reduce operating costs and heat dissipation.
  • Advanced programmability and control: Built-in function generator for complex voltage/current profiles (sine, ramp, arbitrary, PV/FC simulation, battery test, MPPT); local control via touchscreen and knobs; remote control via USB, Ethernet, isolated analogue interface and optional digital bus modules.
  • Comprehensive safety & protection: Adjustable OVP, OCP, OPP, overtemperature protection and user-definable event monitoring for safe operation with sensitive devices.
  • Scalable system integration: Supports Master-Slave and Share bus for parallel operation of multiple units; available in air-cooled or optional water-cooled versions.
  • Precise measurement & logging: High-accuracy voltage and current measurement; front USB port supports data logging to USB stick (CSV).


Characteristics / Technical specifications
  • Cooling: Water cooled (optional)
  • Output current: ±0–125 A
  • Output power: ±30000 W (30 kW)
  • Output voltage: 0–920 V
  • Type / form factor: 4U rack
  • Characteristic curve: U/I/P autoranging
  • External control / Interfaces: Analogue 0–5 V / 0–10 V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN (optional modules: CAN, Profibus, Profinet, Modbus TCP, EtherCAT, etc.)
  • Housing: 19" rack
  • Human interface: 5" color TFT touchscreen (HMI)
  • Special features: Function generator, resistance and sink modes; regenerative electronic load with up to 96.5% energy recovery
  • Typical applications: Battery testing, photovoltaic simulation, fuel cell testing, power aging, laboratory and production high-power testing
  • Article number: HEA3890 (manufacturer code: 30000809)
