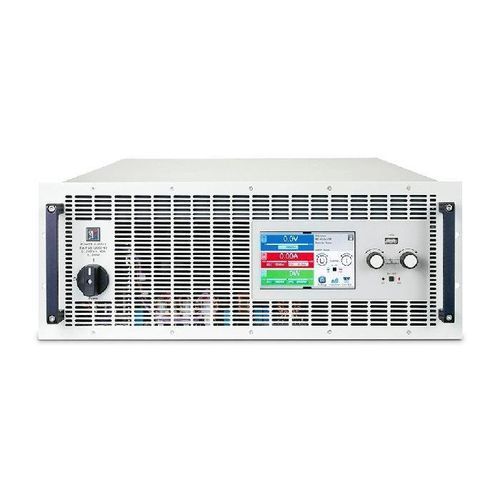

4U power supply EA-PSI 10500-180 4UDCregulatedsingle-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 4U
- Type
- DC
- Output
- single-output, regulated, variable-output
- Connection
- with USB outlet, by cable
- Applications
- for industrial applications, laboratory
- Other characteristics
- programmable, high-power, digital, computer-controlled, liquid-cooled
- Input voltage
Max.: 480 V
Min.: 208 V
- Output voltage
Max.: 500 V
Min.: 0 V
- Current
Max.: 180 A
Min.: 0 A
- Power
Max.: 30,000 W
Min.: 0 W
Description
Overview
Key features
Technical specifications
Interfaces & control
Applications
Mechanical & cooling
- Programmable 4U DC power supply for laboratory and test bench applications.
- High-power output with autoranging for voltage, current and power.
- User interface with touch panel & menu for local operation; remote control via multiple interfaces.
Key features
- Output voltage: 0-500 V
- Output current: ±0-180 A
- Output power: ±30000 W (30 kW)
- Autoranging (U/I/P)
- Built-in function generator
Technical specifications
- Article Number: HEA4068
- Manufacturer Code: 06230804
- Type: 4U
- Housing: 19-inch rack
- Cooling: Water cooled (optional)
Interfaces & control
- Analogue control: 0-5 V / 0-10 V
- Digital & fieldbus: USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Local control: Touch panel & menu
Applications
- Laboratory testing, production test benches, power electronics development, battery and charging system tests
Mechanical & cooling
- 19-inch rack mount (4U)
- Optional water cooling for continuous high-power operation
Catalogs
EA-PSI 10000 4U
97 Pages
