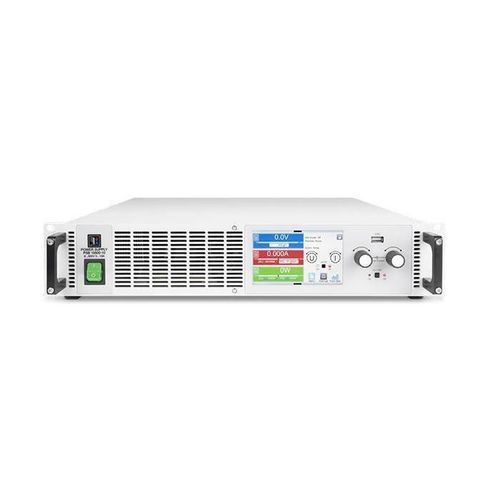

2U power supply EA-PS 10060-60 2U

DCregulatedsingle-output

Overview
Programmable DC power supply EA-PS 10060-60 from EA for 19-inch rack mounting (2U). Autoranging U/I/P behavior with broad output range and multiple external control interfaces for industrial test and laboratory applications.

Key features

• Output voltage: 0–60 V
• Output current: 0–60 A
• Output power: 1500 W
• Form factor: 19-inch rack, 2U
• Characteristic curve: U/I/P autoranging
• External control: Analogue 0–5 V / 0–10 V, USB, LAN, Modbus TCP, Profibus, RS232, CAN
• Human interface: Touch panel with menu
• Special feature: Resistance mode

Technical specifications

• Manufacturer: EA
• Article Number: HEA4144
• Manufacturer Code: 06230940
• Output Voltage: 0...60 V
• Output Current: 0...60 A
• Output Power: 1500 W
• Housing: 19-inch rack
• Unit Height: 2U
• Characteristic Curve: U/I/P autoranging
• External Control Interfaces: Analogue 0–5 V / 0–10 V, USB, LAN, Modbus TCP, Profibus, RS232, CAN
• Human Interface: Touch panel and menu
• Special Feature: Resistance

Interfaces & operation

• Multiple remote-control options suitable for automated test systems and production test benches
• Analogue control inputs for integration in measurement setups
• Network and fieldbus support for remote monitoring and scripted control
• Local operation via touch panel for quick setup and manual tests

Ordering information

• Manufacturer: EA
• Article Number: HEA4144
• Manufacturer Code: 06230940
