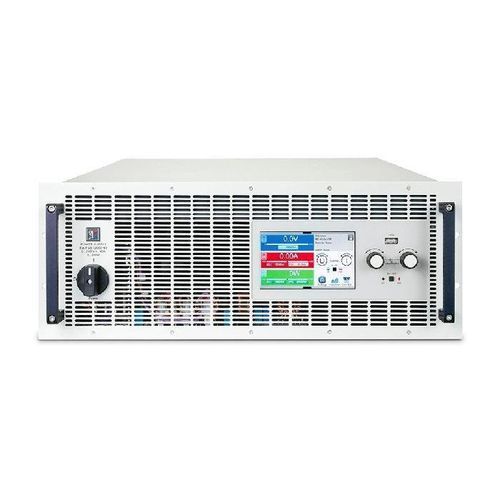

4U power supply EA-PSI 11000-80 4UDCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 4U
- Type
- DC
- Output
- regulated, variable-output, constant-current
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Applications
- for industrial applications, laboratory
- Other characteristics
- programmable, high-power, computer-controlled, liquid-cooled, bipolar
- Input voltage
Min.: -72 V
Max.: 2,000 V
- Output voltage
Min.: 0 V
Max.: 1,000 V
- Current
Min.: 0 A
Max.: 80 A
- Power
Min.: 0 W
Max.: 30,000 W
Description
Overview
Key specifications
Interfaces & control
Features & options
Technical data
- The EA-PSI 11000-80 is a 4U programmable DC power supply designed for high-power laboratory and industrial applications and for integration into automated test and power systems.
Key specifications
- Output voltage: 0–1000 V
- Output current: ±0–80 A
- Output power: ±30000 W (±30 kW)
- Form factor: 19" rack, 4U
- Characteristic: U/I/P autoranging
Interfaces & control
- Human interface: touch panel & Menu
- Remote control: Analogue 0–5 V / 0–10 V; USB; LAN; Modbus TCP; Profibus; DeviceNet; RS232; CAN
Features & options
- Integrated function generator for automated test sequences
- Optional water cooling for extended continuous operation
- Flexible autoranging behaviour for voltage/current/power control
Technical data
- Article Number: HEA4070
- Manufacturer Code: 06230806
- Cooling: Water Cooled (Optional)
- Type: 4U
- Housing: 19" rack
- Special Feature: Function Generator
