2U power supply EA-PSB 10060-60 2UAC/DCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 2U
- Type
- AC/DC
- Output
- regulated, variable-output, constant-current
- Network
- single-phase
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet, by cable
- Other characteristics
- programmable, computer-controlled, bi-directional, stand-alone, CAN Bus
- Input voltage
Max.: 240 V
Min.: 110 V
- Output voltage
Max.: 60 V
Min.: 0 V
- Current
Max.: 60 A
Min.: 0 A
- Power
Max.: 1,500 W
Min.: 0 W
Description

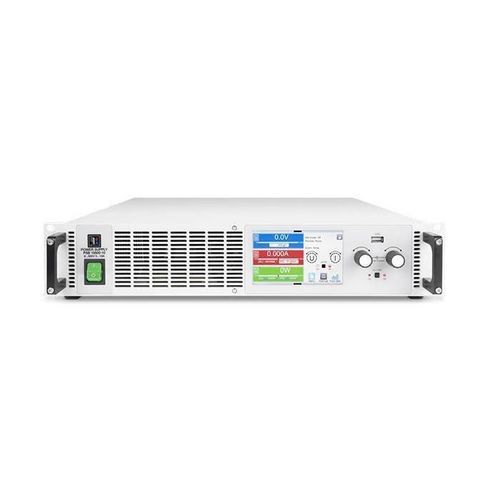

The EA-PSB 10060-60 2U is a 19-inch rack-mountable programmable DC power supply from EA designed for bidirectional operation with autoranging and multiple external control interfaces for integration into automated test systems.
Key features
Technical specifications
Key features
- Bidirectional (source and sink) programmable DC output with autoranging on voltage, current and power (U/I/P).
- 2U rack form factor with touch-panel user interface and menu navigation.
- Integrated function generator and resistance modes for advanced test sequences.
- Extensive external control and communication interfaces for test system integration.
Technical specifications
- Article Number: HEA3955
- Manufacturer Code: 30000720
- Manufacturer: EA
- Output Voltage: 0-60V
- Output Current: ±0-60A
- Output Power: ±1500W
- Type: 2U
- Characteristic Curve: U/I/P autoranging
- External Control: Analogue 0-5V/0-10V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Housing: 19-inch rack
- Human Interface: Touch panel & Menu
- Special Feature: Function Generator, Resistance, Sink
Catalogs
EA-PSB 10000 2U
105 Pages
