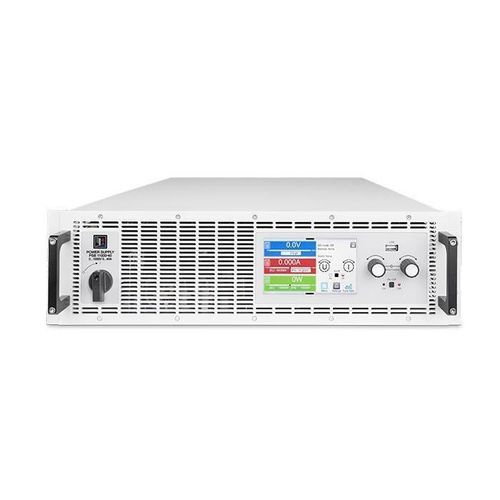

3U power supply EA-PSB 10360-120 3UDCregulatedvariable-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC
- Output
- regulated, variable-output, symmetrical output
- Certifications
- CE, RoHS, UL
- Other characteristics
- programmable, high-power, computer-controlled, stand-alone, liquid-cooled, bipolar
- Input voltage
Max.: 480 V
Min.: 208 V
- Output voltage
Max.: 360 V
Min.: 0 V
- Current
120 A
- Power
15,000 W
Description
The EA-PSB 10360-120 3U is a 3U programmable DC power supply for 19" rack systems, offering wide voltage and current ranges, autoranging and multiple external control interfaces suitable for laboratory and industrial test applications.
Product description
0...360V ±0...120A ±15000W
Key features
Technical specifications
Product description
0...360V ±0...120A ±15000W
Key features
- 19" rack-mountable, 3U form factor for integration in test cabinets and power racks
- Programmable output with U/I/P autoranging for flexible power management
- High power: up to ±15000W and ±120A for demanding loads
- Multiple control interfaces: Analogue 0-5V / 0-10V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Optional water cooling for high thermal loads
- Human interface: touch panel and menu for local operation
- Special functions: function generator, resistance mode, sink (active load)
Technical specifications
- Article Number: HEA3911
- Manufacturer Code: 30000703
- Manufacturer: EA
- Cooling: Water Cooled (Optional)
- Output Current: ±0-120A
- Output Power: ±15000W
- Output Voltage: 0-360V
- Type: 3U
- Characteristic Curve: U/I/P autoranging
- External Control: Analogue 0-5V / 0-10V, USB, LAN, Modbus TCP, Profibus, DeviceNet, RS232, CAN
- Housing: 19" rack
- Human Interface: Touch panel & Menu
- Special Feature: Function Generator, Resistance, Sink
