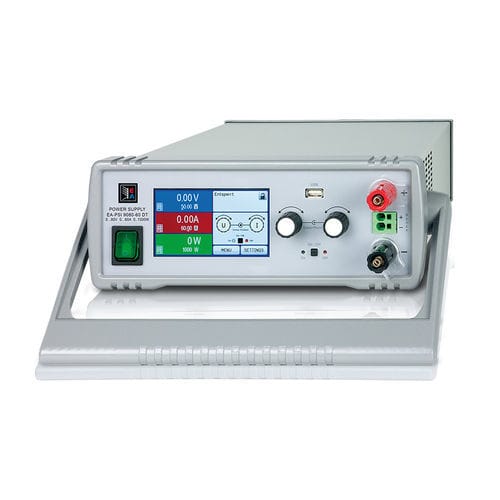

Tabletop power supply EA-PSI 9080-40 DT
DCregulatedconstant-current

Tabletop power supply - EA-PSI 9080-40 DT - TPS Elektronik GmbH - DC / regulated / constant-current
Tabletop power supply - EA-PSI 9080-40 DT - TPS Elektronik GmbH - DC / regulated / constant-current
Add to favorites
Compare this product
Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format
tabletop
Type
DC
Output
regulated, variable-output, constant-current
Network
single-phase
Protection
with overload protection, with overcurrent protection, with overheating protection, with current limiting
Certifications
CE, RoHS, UL
Connection
with USB outlet
Applications
for industrial applications, laboratory, for automation
Other characteristics
with power factor correction, programmable, low-noise level, galvanically-isolated, computer-controlled
Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

Max.: 80 V

Min.: 0 V

Current

Max.: 40 A

Min.: 0 A

Power

1,000 W

Description

The EA-PSI 9080-40 DT is a programmable desktop DC power supply intended for industrial and laboratory use, providing flexible auto-ranging output, advanced control interfaces and configurable protection for integration into automated test systems.

Key features
  • Auto-ranging output stage for efficient operation across voltage/current ranges.
  • Color TFT touch panel with two rotary knobs and multilingual menu (German, English, Russian, Chinese) for intuitive local control.
  • Comprehensive connectivity: USB (control and data storage), LAN (Ethernet), galvanically isolated analogue I/O and Modbus TCP.
  • Integrated true function generator and internal resistance simulation for dynamic waveform and load testing.
  • Configurable protection mechanisms: OVP, OCP, OPP and OT.
  • Low output noise and ripple with an additional output filter (10 mVPP / 1.5 mVRMS voltage; 6 mARMS current).
  • Professional remote control via SCPI and compatibility with "EA Power Control" Windows software (sequencing, data storage, optional multi-unit control up to 20 devices).


Technical specifications
  • Output Voltage: 0–80 V
  • Output Current: 0–40 A
  • Output Power: 1000 W
  • Characteristic Curve: U/I/P autoranging
  • External Control: Analogue 0–5 V / 0–10 V, USB, LAN, Modbus TCP
  • AC Input Range: 90–264 V AC with active Power Factor Correction (PFC > 0.99)
  • Efficiency: up to 92%
  • Output Noise / Ripple: 10 mVPP / 1.5 mVRMS (voltage); 6 mARMS (current)
  • Housing: Desktop (table)
  • Human Interface: Touch panel & menu; two rotary knobs
  • Special Features: Function generator, internal resistance simulation, additional output filter
  • Protection: Configurable Overvoltage (OVP), Overcurrent (OCP), Overpower (OPP), Overtemperature (OT)
  • Control & Software: SCPI command support; compatible with "EA Power Control" (sequencing, multi-unit control option)
  • Multilingual display: German, English, Russian, Chinese
  • Article Number: HEA4517
  • Manufacturer Code: 06200506
  • Manufacturer: EA


Applications
  • Automated test systems and production test benches.
  • R&D and laboratory measurements for power electronics and motor drives.
  • Component and device characterization requiring dynamic load/waveform simulation.
