Radial seal RI

rotaryelastomerNBR

Description

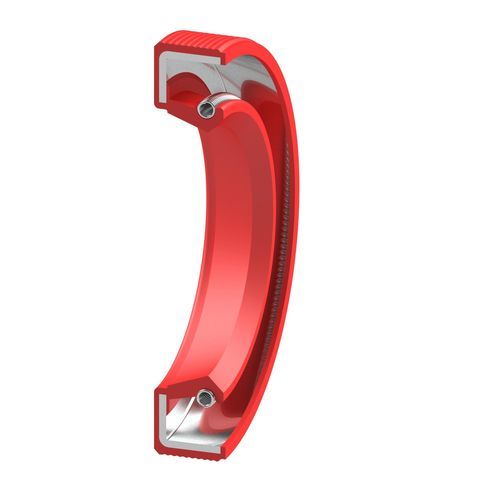

The Radial Oil Seal Type RI is a rotary shaft seal with a waved elastomeric outer diameter designed for easy installation and improved static tightness in the groove. The sealing lip includes an inserted tension spring. It is intended for rotating shafts in housings with no or minimal pressure fluctuations. Standard elastomer materials are NBR and FKM; other materials available on request.

Fields of application

• static
• dynamic
• single acting
• double acting
• linear
• rotating
• oscillating

Main use
unpressurized sealing for rotating shafts

Materials
elastomers, metal. Standard elastomers: NBR, FKM

Technical values

• NBR variant: Pressure up to 0.05 MPa; Temperature range -30°C to +100°C (material dependent); Speed: dependent on material and diameter
• FKM variant: Pressure up to 0.05 MPa; Temperature range -20°C to +200°C (material dependent); Speed: dependent on material and diameter
• Note: Maximum values for temperature, speed and pressure are not simultaneously applicable; values vary depending on material and medium

Specifications / technical characteristics

• Commercial name: Oil Seal Type RI
• Design: rotary shaft seal with waved outer diameter (similar to RA design)
• Outer diameter: elastomeric
• Spring: inserted tension spring
• Main use: unpressurized sealing for rotating shafts
• Suitable for housings with no or minimal pressure fluctuations
• Materials: elastomers (standard: NBR, FKM), metal; other materials on request
• Maximum pressure (typ.): up to 0.05 MPa
• Temperature ranges (material dependent): NBR: -30°C to +100°C; FKM: -20°C to +200°C
• Rotational speed: dependent on material and diameter
• Applicable motions: rotating, oscillating, linear, single acting, double acting
