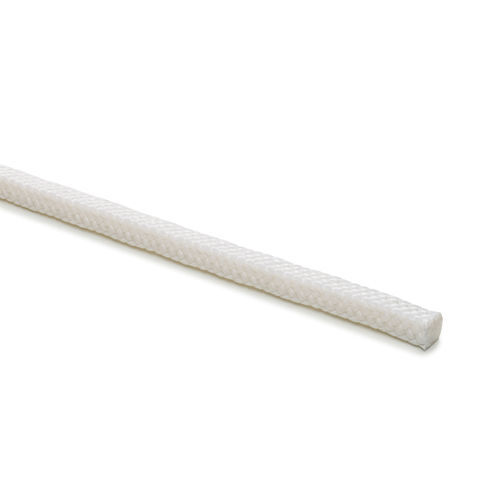

Braided PTFE packing T4301

synthetic yarnchemical-resistanthigh resistance

Description
ULMAN T4301 is manufactured from ePTFE yarn with high tensile strength and a microporous structure that retains lubricants. It provides improved heat dissipation compared with conventional PTFE packings, making it suitable for high-speed pumps. The material offers excellent chemical resistance in both acidic and alkaline media. The yarn purity makes it appropriate for applications requiring high medium quality. Minimal shrinkage and stable volume ensure a permanently reliable seal.

Application
Suitable for use in pumps, mixers, valves and slide gates. Temperature range up to approx. 280 °C allows flexible use across various industrial processes. Typical industries include chemical and pharmaceutical production, refineries, food processing, and energy and process engineering.

Fields of application

• static
• dynamic
• single acting
• double acting
• linear
• rotating
• oscillating

Main use
Used in pumps, mixers, valves and slide gates; suitable for acidic and alkaline media.

Materials
PTFE, yarn

Technical values
Materials: PTFE
Pressure: 30 dyn. / 250 stat.
Temperature: -200 °C / +280 °C
Speed: 18 m/s
pH value: 0 - 14

Delivery forms / Additional technical information
Delivery forms: 4–25 mm square, other dimensions available on request
Specific density: 1.5 g/cm³ ± 10%
Packaging weights by size: up to 08 mm – 1 kg; up to 12 mm – 2 kg; up to 16 mm – 4 kg; up to 25 mm – 5 kg

Characteristics / technical specifications

• Model: T4301
• Material: PTFE yarn with lubrication
• Temperature range: -200 °C to +280 °C
• Pressure rating: 30 dyn. / 250 stat.
• Max speed: 18 m/s
• pH range: 0–14
• Specific density: 1.5 g/cm³ ±10%
• Delivery cross-section: 4–25 mm square (other on request)
• Packaging weights by size: up to 8 mm: 1 kg; up to 12 mm: 2 kg; up to 16 mm: 4 kg; up to 25 mm: 5 kg
