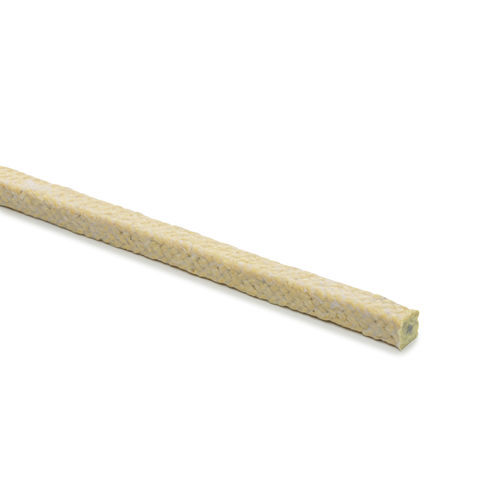

Braided PTFE packing T4905aramid fiberhigh resistancechemical-resistant
Add to favorites
Compare this product
Characteristics
- Material
- PTFE, aramid fiber
- Other characteristics
- high resistance, chemical-resistant
- Applications
- for wastewater treatment, for valves, for the chemical industry, for the food industry, for mixers, for petrochemical applications, for pump
- Operating temperature
Max.: 280 °C
(536 °F)Min.: -100 °C
(-148 °F)
Description
ULMAN T4905
ULMAN T4905 - The base material of this packing, aramid staple fibre, is a synthetic fibre with very high strength. The fibre structure, combined with a high degree of impregnation with PTFE dispersion, makes the packing particularly suitable for abrasive environments. Although the packing absorbs abrasive particles, they cannot damage its structure or impair its performance. It also provides high resistance to cutting and wear.
Application
ULMAN T4905 is used for sealing pumps, mixers, valves, sliders and refiners. It exhibits minimal wear even under very high pressure and covers a wide range of applications. The packing is suitable for sealing in numerous chemically aggressive media as well as in water and steam up to 280 °C. Typical sectors include chemical, pharmaceutical, oil refining and food industries, chemical departments of power plants, and metallurgy. It is also frequently used for sealing pumps handling wastewater containing abrasive particles.
Fields of application
Main use
Sealing pumps, mixers, valves, sliders and refiners. Shows minimal wear even under very high pressure and covers a broad range of applications.
Materials
Aramid staple fibre; PTFE impregnation and lubricant.
Technical values
Delivery Forms
4–25 mm square; other dimensions available on request. Specific density: 1.5 g/cm³ ± 10%. Typical pack weights by thickness: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg.
Characteristics / Technical specifications
ULMAN T4905 - The base material of this packing, aramid staple fibre, is a synthetic fibre with very high strength. The fibre structure, combined with a high degree of impregnation with PTFE dispersion, makes the packing particularly suitable for abrasive environments. Although the packing absorbs abrasive particles, they cannot damage its structure or impair its performance. It also provides high resistance to cutting and wear.
Application
ULMAN T4905 is used for sealing pumps, mixers, valves, sliders and refiners. It exhibits minimal wear even under very high pressure and covers a wide range of applications. The packing is suitable for sealing in numerous chemically aggressive media as well as in water and steam up to 280 °C. Typical sectors include chemical, pharmaceutical, oil refining and food industries, chemical departments of power plants, and metallurgy. It is also frequently used for sealing pumps handling wastewater containing abrasive particles.
Fields of application
- static
- dynamic
- single acting
- double acting
- linear
- rotating
- oscillating
Main use
Sealing pumps, mixers, valves, sliders and refiners. Shows minimal wear even under very high pressure and covers a broad range of applications.
Materials
Aramid staple fibre; PTFE impregnation and lubricant.
Technical values
- Materials: Aramid staple fibre
- Pressure: 20 dyn. / 150 stat.
- Temperature: -100 °C / +280 °C
- Speed: 15 m/s
- pH value: 2 - 12
Delivery Forms
4–25 mm square; other dimensions available on request. Specific density: 1.5 g/cm³ ± 10%. Typical pack weights by thickness: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg.
Characteristics / Technical specifications
- Model: T4905
- Base material: Aramid staple fibre
- Impregnation: PTFE dispersion
- Temperature range: -100 °C to +280 °C
- Pressure rating: 20 dyn. / 150 stat.
- Maximum speed: 15 m/s
- pH range: 2 - 12
- Delivery form: 4–25 mm square (other dimensions on request)
- Specific density: 1.5 g/cm³ ± 10%
- Typical pack weights by thickness: ≤8 mm: 1 kg; ≤12 mm: 2 kg; ≤16 mm: 4 kg; ≤25 mm: 5 kg
