Radial seal RFrotaryelastomerNBR
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Material
- metal, elastomer, NBR, FKM
- Configuration
- circular
- Application
- for rotating shafts, for radial shaft
- Fluid
- oil, gas
- Other characteristics
- dynamic, single-acting, radial, dust protection, with spring
- Temperature limit
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)- Pressure limit
Max.: 50,000 Pa
(7.3 psi)Min.: 0 Pa
(0 psi)
Description
Product description

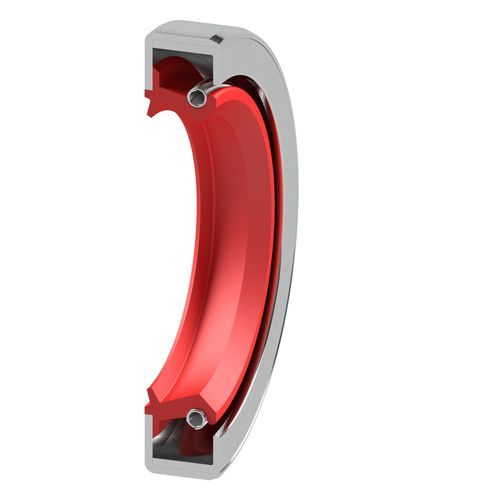

The Radial Oil Seal Type RF is a rotary shaft seal manufactured to DIN 3760 (design type CS). It has a metal outer diameter with an additional metal insert to ensure an increased press fit in bores under rough conditions. The sealing element is an elastomer lip with an inserted tension spring and an additional dust lip for applications with high external dust content. The seal is suitable for unpressurized rotary applications and for low-viscosity media or gases when compatible surface treatments are applied.
Fields of application
Main use
Unpressurized sealing for rotating shafts in housings with minimal pressure fluctuations.
Materials
Technical values (overview)
Technical specifications
The Radial Oil Seal Type RF is a rotary shaft seal manufactured to DIN 3760 (design type CS). It has a metal outer diameter with an additional metal insert to ensure an increased press fit in bores under rough conditions. The sealing element is an elastomer lip with an inserted tension spring and an additional dust lip for applications with high external dust content. The seal is suitable for unpressurized rotary applications and for low-viscosity media or gases when compatible surface treatments are applied.
Fields of application
- static
- dynamic
- single-acting
- double-acting
- linear motion
- rotating shafts
- oscillating shafts
Main use
Unpressurized sealing for rotating shafts in housings with minimal pressure fluctuations.
Materials
- Elastomers (standard: NBR, FKM)
- Metal (outer ring, insert)
- Other materials and compounds available on request
Technical values (overview)
- Available elastomers: NBR, FKM
- Typical maximum pressure (NBR): up to 0.05 MPa
- Temperature range (NBR): -30 °C to +100 °C (material dependent)
- Typical maximum pressure (FKM): up to 0.05 MPa
- Temperature range (FKM): -20 °C to +200 °C (material dependent)
- Surface speed: dependent on material and shaft diameter
- Note: Maximum temperature, speed and pressure values are not simultaneously applicable and depend on material and media
Technical specifications
- Denomination: Oil Seal Type RF
- Standard / design: DIN 3760, design type CS
- Outer construction: metal outer diameter with additional metal insert for increased press fit
- Sealing element: elastomer lip(s) with inserted tension spring
- Additional features: dust lip for high external dust content
- Main applications: rotating shafts in housings with no or minimal pressure fluctuations; suitable for low-viscosity media and gases if surface treatment is appropriate
- Standard elastomers: NBR, FKM (other materials on request)
- Typical maximum pressure: up to 0.05 MPa
- Temperature ranges (material dependent): NBR -30 °C to +100 °C; FKM -20 °C to +200 °C
- Speed: depends on selected material and shaft diameter
