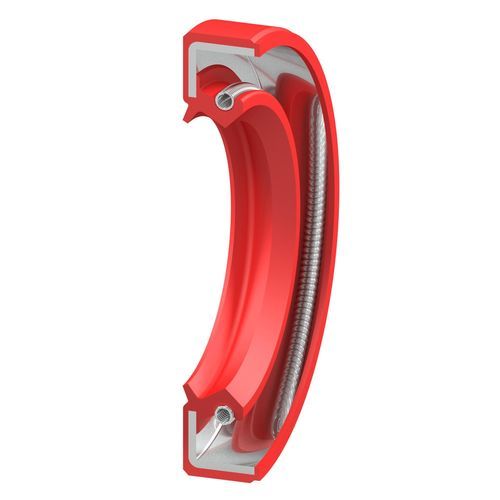

Radial shaft seal RP

rotaryelastomerNBR

Overview The Radial Oil Seal Type RP is a rotary shaft seal similar to the Oil Seal design type RD, but pressure resistant. It features an elastomeric outer diameter, an inserted tension spring and an additional dust lip for applications with a high dust content from outside. It is suitable for rotating shafts in housings with no internal pressure or with pressure differentials up to 0.5 MPa. Standard elastomer materials are NBR and FKM; further materials are available upon demand.

Fields of application

• static
• dynamic
• single acting
• double acting
• linear
• rotating
• oscillating

Main use pressurized sealing for rotating shafts

Materials elastomers, metal

Technical values

• Materials (available variants): NBR, FKM
• Pressure: up to 0.5 MPa
• Temperature (NBR): -30°C / +100°C (material dependent)
• Temperature (FKM): -20°C / +200°C (material dependent)
• Speed: depending on material and diameter
• Note: Maximum values for temperature, speed and pressure are not simultaneously applicable; values vary depending on material and media.

Technical specifications

• Design: Radial oil seal (Type RP)
• Outer diameter: elastomeric
• Sealing element: elastomer lip with inserted tension spring
• Additional feature: dust lip for high external dust content
• Main application: pressurized sealing on rotating shafts
• Standard materials: NBR, FKM (other materials available on request)
• Rated pressure: up to 0.5 MPa
• Temperature ranges: NBR -30°C to +100°C; FKM -20°C to +200°C (material dependent)
• Speed: depends on material and shaft diameter
