Braided PTFE packing T4901

aramid yarnchemical-resistanthigh resistance

Overview

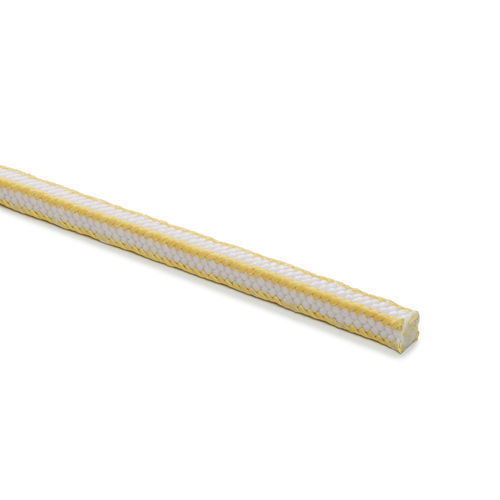

ULMAN T4901 is braided from pure PTFE yarn and reinforced with aramid yarn at the corners. The packing is impregnated with a lubricant to reduce friction. The aramid corner reinforcement improves mechanical stability and enables use under very high pressure, particularly in piston pumps.

Application
The packing is designed for sealing pumps, valves and sliders. It performs reliably in chemically aggressive media and in water and steam (use up to 280 °C). Typical application sectors include chemical and pharmaceutical plants, oil refineries, food industry, chemical departments of power generation, metallurgy and pulp and paper. It is also commonly used in the sugar industry, malt houses and lime plants.

Fields of application

• Static
• Dynamic
• Single acting
• Double acting
• Linear
• Rotating
• Oscillating

Materials
PTFE main yarn; aramid corner reinforcement; lubricant impregnation.

Technical specifications

• Model: T4901
• Main material: PTFE
• Corner reinforcement: aramid yarn
• Impregnation: lubricant
• Pressure: 30 dyn. / 300 stat.
• Temperature range: -240 °C to +550 °C (water/steam up to 280 °C)
• Maximum speed: up to 30 m/s
• pH range: 2–12
• Specific density: 1.4 g/cm³ ±10%

Delivery forms and weights

• Profiles: square 6–25 mm (other dimensions available on request)
• Typical packaging weights: up to 08 mm – 1 kg; up to 12 mm – 2 kg; up to 16 mm – 4 kg; up to 25 mm – 5 kg

Characteristics

• Robust sealing solution for pumps, valves and sliders
• Suitable for a wide range of chemically aggressive media
• Aramid corners improve performance under high pressure and in piston applications
