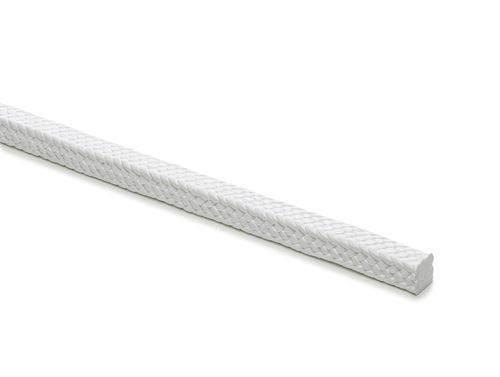

Braided PTFE packing T4152chemical-resistanthigh resistancefor hygienic applications
Add to favorites
Compare this product
Characteristics
- Material
- PTFE
- Other characteristics
- chemical-resistant, high resistance
- Applications
- for hygienic applications, for the chemical industry, for mixers, for rotary applications, for static applications, for pump, for petrochemical applications, for the food industry, for high-speed pumps, for valves, high-temperature
- Operating temperature
Min.: -200 °C
(-328 °F)Max.: 280 °C
(536 °F)
Description
Overview
ULMAN T4152 is manufactured from a high-tensile-strength PTFE yarn. The selected additives combined with PTFE’s sliding characteristics improve heat dissipation, making the material suitable for high-speed pumps. The packing resists acids and alkalis, shows minimal shrinkage and stable volume, and its microporous structure retains lubricants for extended service life.
Application
Used where high temperatures, aggressive media or variable operating conditions require reliable sealing: pumps, mixers and valves in chemical, power, food, pharmaceutical, oil & refinery and general plant engineering.
Fields of application
Main use
Chemical industry (acids, alkalis, solvents); power and energy systems (hot water, steam, condensate); food and pharmaceutical industries where medium purity is required.
Materials
PTFE
Technical values
Pressure: 30 dyn. / 250 stat.
Temperature: -200 °C / +280 °C
Speed: up to 15 m/s
pH value: 0–14
Delivery forms
Square section 4–25 mm, other dimensions on request
Specific density: 1.2 g/cm³ ±10%
Also available with FDA conformity (T4152F)
Packaging weights: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg
Characteristics / technical specifications
ULMAN T4152 is manufactured from a high-tensile-strength PTFE yarn. The selected additives combined with PTFE’s sliding characteristics improve heat dissipation, making the material suitable for high-speed pumps. The packing resists acids and alkalis, shows minimal shrinkage and stable volume, and its microporous structure retains lubricants for extended service life.
Application
Used where high temperatures, aggressive media or variable operating conditions require reliable sealing: pumps, mixers and valves in chemical, power, food, pharmaceutical, oil & refinery and general plant engineering.
Fields of application
- static
- dynamic
- single acting
- double acting
- linear
- rotating
- oscillating
Main use
Chemical industry (acids, alkalis, solvents); power and energy systems (hot water, steam, condensate); food and pharmaceutical industries where medium purity is required.
Materials
PTFE
Technical values
Pressure: 30 dyn. / 250 stat.
Temperature: -200 °C / +280 °C
Speed: up to 15 m/s
pH value: 0–14
Delivery forms
Square section 4–25 mm, other dimensions on request
Specific density: 1.2 g/cm³ ±10%
Also available with FDA conformity (T4152F)
Packaging weights: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg
Characteristics / technical specifications
- Model: T4152
- Material: PTFE
- Yarn with exceptionally high tensile strength for improved durability
- Enhanced heat dissipation due to selected additives
- Microporous structure retaining lubricants for long service life
- Minimal shrinkage and consistent volume for reliable sealing
- Chemical resistance: suitable for acids, alkalis, solvents (pH 0–14)
- Temperature range: -200 °C to +280 °C
- Pressure rating: 30 dyn. / 250 stat.
- Maximum recommended speed: 15 m/s
- Specific density: approx. 1.2 g/cm³ ±10%
- Delivery sizes: square 4–25 mm (other dimensions on request)
- Packaging weights: ≤8 mm = 1 kg; ≤12 mm = 2 kg; ≤16 mm = 4 kg; ≤25 mm = 5 kg
- Available with FDA conformity as T4152F
- Typical applications: pumps, mixers, valves; chemical, power, food, pharmaceutical, oil & refinery industries
