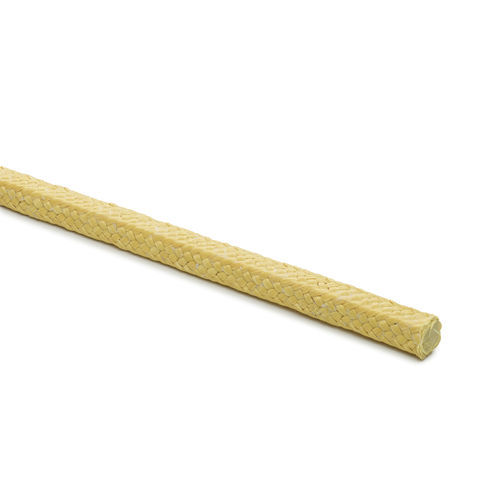

Braided PTFE packing T4902aramidaramid fiberaramid yarn
Add to favorites
Compare this product
Characteristics
- Material
- PTFE, aramid, aramid yarn, aramid fiber
- Other characteristics
- high resistance, chemical-resistant
- Applications
- for pump, for piston pumps, for the chemical industry, for rotary applications, for high-pressure applications, for harsh conditions, for static applications
- Operating temperature
Min.: -100 °C
(-148 °F)Max.: 280 °C
(536 °F)
Description
Product overview
ULMAN T4902 is braided from aramid filament yarn and impregnated with PTFE. The base material, aramid fibre, provides very high tensile strength and excellent resistance to pressure and abrasion. The packing exhibits minimal wear even under high-pressure conditions.
Application
The packing is suitable for sealing in a wide range of chemically aggressive and abrasive media, as well as in water and steam up to 280 °C. It is applicable in rotary and piston pumps, with primary use in piston pumps, and is suitable for high-pressure and demanding operating conditions. ULMAN T4902 demonstrates extended service life in abrasive media.
Installation note
Due to the high yarn strength, the use of shaft sleeves (sleeved shafts) is recommended to protect the shaft and ensure correct compression and alignment of the packing.
Fields of application
Main use
Sealing in chemically aggressive and abrasive media, and in water and steam up to 280 °C.
Materials
Aramid filament yarn, PTFE impregnation.
Technical values
Delivery forms
Standard cross-sections: 4–25 mm square; other dimensions available on request. Specific density: 1.4 g/cm³ ± 10%. Typical packaging weights by cross-section: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg.
Characteristics / technical specifications
ULMAN T4902 is braided from aramid filament yarn and impregnated with PTFE. The base material, aramid fibre, provides very high tensile strength and excellent resistance to pressure and abrasion. The packing exhibits minimal wear even under high-pressure conditions.
Application
The packing is suitable for sealing in a wide range of chemically aggressive and abrasive media, as well as in water and steam up to 280 °C. It is applicable in rotary and piston pumps, with primary use in piston pumps, and is suitable for high-pressure and demanding operating conditions. ULMAN T4902 demonstrates extended service life in abrasive media.
Installation note
Due to the high yarn strength, the use of shaft sleeves (sleeved shafts) is recommended to protect the shaft and ensure correct compression and alignment of the packing.
Fields of application
- Static
- Dynamic
- Single acting
- Double acting
- Linear
- Rotating
- Oscillating
Main use
Sealing in chemically aggressive and abrasive media, and in water and steam up to 280 °C.
Materials
Aramid filament yarn, PTFE impregnation.
Technical values
- Material: Aramid staple fibre / Aramid filament yarn
- Pressure rating: 20 dyn. / 150 stat.
- Temperature range: -100 °C to +280 °C
- Max speed: 15 m/s
- pH resistance: 2 - 12
Delivery forms
Standard cross-sections: 4–25 mm square; other dimensions available on request. Specific density: 1.4 g/cm³ ± 10%. Typical packaging weights by cross-section: ≤8 mm – 1 kg; ≤12 mm – 2 kg; ≤16 mm – 4 kg; ≤25 mm – 5 kg.
Characteristics / technical specifications
- Model: T4902
- Brand: ULMAN
- Base material: Aramid fibre (filament yarn / staple fibre)
- Impregnation: PTFE
- Main use: Sealing in chemically aggressive and abrasive media, water and steam (up to 280 °C)
- Pressure rating: 20 dyn. / 150 stat.
- Temperature range: -100 °C to +280 °C
- Max speed: 15 m/s
- pH resistance: 2 - 12
- Specific density: 1.4 g/cm³ ± 10%
- Delivery cross-section: 4–25 mm square (other dimensions on request)
- Typical packaging weights: ≤8 mm: 1 kg; ≤12 mm: 2 kg; ≤16 mm: 4 kg; ≤25 mm: 5 kg
