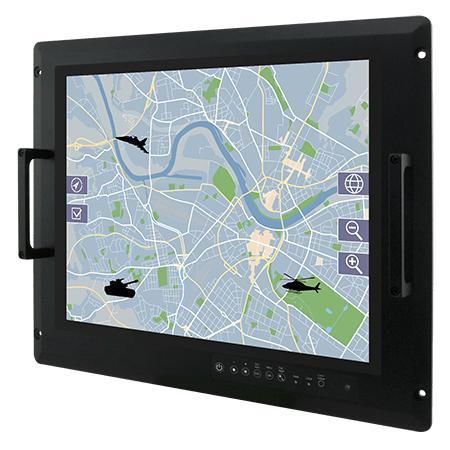

PCAP touchscreen panel PC R15IW3S-MLA3FP

multitouch screentouch screen15"

Overview
Winmate R15IW3S-MLA3FP is a 15-inch defence-grade console rack panel PC engineered for command centers, control rooms and mission-critical installations. Designed and tested to MIL-STD-810G environmental and MIL-STD-461E/F EMC standards, the unit supports deployment in harsh and regulated environments. Key design elements include an Intel® Core™ i5-8265U processor, anti-corrosion metal housing with fanless cooling, projected capacitive multi-touch interface, integrated ambient light sensor for automatic brightness control, and an 8U flush rack mounting mechanical design.

Key Features

• Intel® Core™ i5-8265U 1.6GHz processor (boost up to 3.9GHz)
• Anti-corrosion metal housing with fanless thermal design
• Projected Capacitive (PCAP) multi-touch display (default)
• Compliant with MIL-STD-810G/H and MIL-STD-461E/F
• Flush rack / 8U rack-mount mechanical design
• On-screen display (OSD) controls with 8-key OSD control pad
• AC 100–240V standard power input; optional isolated DC 9–36V input
• Built-in ambient light sensor for automatic brightness adjustment

Product Highlights

• Defence-grade compliance: Built and tested to MIL-STD environmental and EMC criteria for use in defence and mission-critical systems.
• Console integration: 8U rack form factor and flush-mount design for ergonomic command console and control room installations.
• Military-grade connectors: Standard MIL-DTL-38999 type I power connector and optional type III I/O connectors for cable-to-panel compatibility with existing defence infrastructure.
• Touch and physical controls: Projective capacitive touch plus front-panel OSD keys provide quick local adjustments (brightness, night/day, lock, reset).
• Adaptive display: Integrated ambient light sensor automatically adjusts screen brightness to surrounding conditions.

Specifications

• Model: R15IW3S-MLA3FP
• Manufacturer: Winmate
• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch (Default); PCAP with ITO Film (Optional)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 500 nits
• Display - Contrast Ratio: 2500:1
• Display - View Angles: 88,88,88,88
• Display - Active Area: 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-8265U 1.6GHz (up to 3.9GHz)
• Memory: 1 x SO-DIMM DDR4 2400 MHz, 4GB (Default); optional 8GB, 16GB, 32GB
• Storage: 1 x M.2 2242 B-key SSD 64GB (Default); up to 512GB optional
• Ethernet Controller: Intel® I210-AT + Intel® I219-LM
• Operating System: Windows 10 IoT Enterprise (Optional)
• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Compliance - MIL-STD-461E/F/G: RE101 / RE102; CE101 / CE102; CS118; (EMI Glass / Touch optional) RS101 / RS103; CS101 / CS106 / CS109 / CS114 / CS115 / CS116
• Compliance - MIL-STD-810G/H: Vibration Method 514.6; Humidity Method 507.5; Transit Drop Method 516.6
• Certifications: CE, FCC
• Accessory: 1 x Manual (Hardcopy); 1 x Driver CD; 1 x Power Cord (MIL-DTL-38999/1)
• Mechanical - Dimension: 402 x 321 x 70 mm
• Mechanical - Mounting: Rack Mount / VESA Mount
• Mechanical - Enclosure: Metal housing with aluminum bezel (anti-corrosion)
• Cooling System: Fanless design
• IO Ports - USB: 2 x USB 3.2 Gen 1
• IO Ports - Serial: 1 x RS232 (Default) / 422 / 485
• IO Ports - LAN: 2 x RJ-45
• IO Ports - Video: 1 x HDMI (Optional)
• Power - Rating: AC 100–240V, Universal, ±10% (Default); DC 9–36V, ±10% (Optional)
• Control - OSD Buttons: 8-key OSD Control Pad (Power; Brightness DOWN; Brightness UP; Night; Day; Auto / Manual; Reset; Lock)
