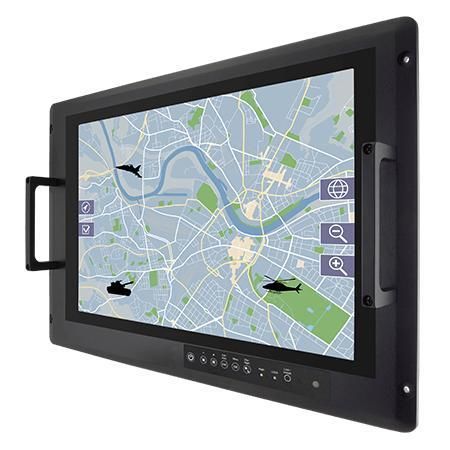

PCAP touchscreen panel PC W22IW3S-MLA3FP

multitouch screen21.5"Intel® Core™ i5-8265U

Overview
Reliable computing tailored for defence applications. All Winmate Defence Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD-461F EMC standards. In-house reliability tests ensure consistent operation in harsh defence environments.

Key features

• Intel® Core™ i5-8265U 1.6GHz (up to 3.9GHz)
• 21.5-inch FHD (1920 x 1080), 250 nits, 3000:1
• Projected capacitive multi-touch (PCAP) touchscreen
• Flush rack / rack mount mechanical design (8U), metal housing with aluminum bezel
• Fanless design and anti-corrosion housing
• Dual Intel Ethernet controllers; multiple I/O including USB and serial
• AC 100~240V default; isolated DC 9~36V optional
• Built-in light sensor for automatic brightness control; 8-key OSD
• Compliant with MIL-STD-810G/H and MIL-STD-461E/F/G; CE; FCC

Defence-grade connectors
Includes MIL-DTL-38999 type I power input connector. Selected models offer MIL-DTL-38999 type III I/O connectors for cable-to-panel applications in defence, air traffic control and other mission-critical systems.

Touch and on-screen controls
User-friendly projected capacitive touchscreen combined with physical OSD buttons on the front panel provides quick access to central controls (power, brightness down/up, night/day, auto/manual, reset, lock).

Auto brightness
Built-in ambient light sensor adjusts display brightness automatically to maintain visibility under varying lighting conditions.

Display

• Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi-Touch (PCAP) default; PCAP with ITO film optional
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89/89/89/89

System specification

• Processor: Intel Core i5-8265U 1.6GHz (up to 3.9GHz)
• Memory: 1 x SO-DIMM DDR4 2400 MHz, 4GB default; 8/16/32GB optional
• Storage: 1 x M.2 2242 B-key SSD 64GB default; up to 512GB optional
• Ethernet: Intel I210-AT + I219-LM
• OS: Windows 10 IoT Enterprise optional

Environment

• Operating humidity: 10% to 95% RH
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 60°C

Compliance
Meets MIL-STD-461E/F/G (RE101/RE102; CE101/CE102; CS/RS series) and MIL-STD-810G/H (vibration, humidity, transit drop) as specified for selected configurations.

Certifications

• MIL-STD-461F
• MIL-STD-810G
• FCC
• CE

Accessories

• 1 x Manual (hardcopy)
• 1 x Driver CD
• 1 x Power cord (MIL-DTL-38999/1)

Mechanical

• Dimensions: 580 x 384 x 71 mm
• Mounting: Rack mount / VESA mount; flush rack design (8U)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design

IO ports

• USB: 2 x USB 3.2 Gen 1
• Serial: 1 x RS232 default (option: RS422/485)
• LAN: 2 x RJ-45
• Video: 1 x HDMI optional

Power

• Power rating: AC 100 ~ 240V universal ±10% default; DC 9 ~ 36V ±10% optional (isolated)

Control
8-key OSD control pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto/Manual, Reset, Lock

Technical specifications

• Model: W22IW3S-MLA3FP
• Display: 21.5" FHD (1920x1080), 250 nits, 3000:1
• Touch: Projected Capacitive Multi-Touch (PCAP)
• CPU: Intel Core i5-8265U
• Memory: 4GB default (expandable)
• Storage: M.2 2242 B-key SSD 64GB default (up to 512GB)
• Dimensions: 580 x 384 x 71 mm; Rack mount 8U
