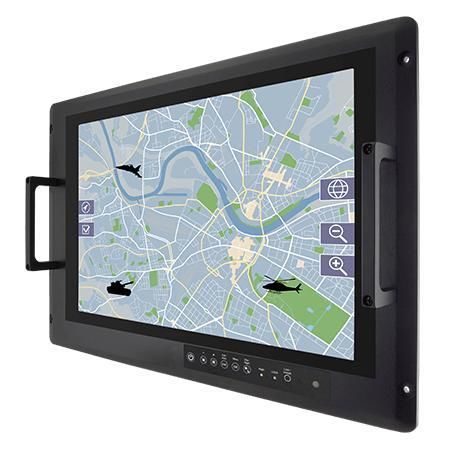

PCAP touchscreen panel PC W24IW3S-MLA2FP

multitouch screen24"Intel® Core i5

Overview
Winmate W24IW3S-MLA2FP is a 24-inch defence console rack panel PC powered by Intel Core i5-8265U designed for defense operations, field command, and mission-critical mobility. It targets industrial buyers, OEMs, and system integrators requiring rugged, long-lifecycle hardware for harsh environments. The unit is engineered to meet MIL-STD environmental and EMC standards and provides an ergonomic rack-mounted design for command centers.

Key Features

• Intel Core i5-8265U 1.6 GHz processor (up to 3.9 GHz)
• Anti-corrosion metal housing, fanless thermal design
• Projected capacitive multi-touch (PCAP) display; PCAP with ITO film optional
• Compliance with MIL-STD-810G/H and MIL-STD-461E/F (EMC)
• Flush rack / rack mount mechanical design (8U)
• 8-key OSD control pad for front access to power and display functions
• AC 100–240V power input (default); isolated DC 9–36V optional
• Built-in ambient light sensor for automatic brightness control

Reliable Computing Tailored for Defence Applications
All defence console rack panel PCs are designed and tested to MIL-STD-810G environmental and MIL-STD-461 series EMC standards. In-house reliability tests verify operation under vibration, humidity and transit conditions typical of defence deployments.

Command Center Focused Design
Ergonomic layout and rack-oriented mechanical design enable efficient integration into command consoles and control rooms. The flush 8U rack option simplifies installation in existing racks and consoles.

Defence-Grade Connectors and Compatibility
The product supports MIL-DTL-38999 type I power input connector and, optionally on selected models, MIL-DTL-38999 type III I/O connectors to ensure compatibility with defence-grade cabling and systems.

Ultimate Touch Experience and On-Screen Controls
Projected capacitive touch with precise multi-touch input is combined with front OSD keys for quick access to central controls (power, brightness down/up, night/day, auto/manual, reset, lock).

Auto Brightness Control
Integrated ambient light sensor enables automatic display brightness adjustment to match varying lighting conditions and reduce operator fatigue.

Certifications & Compliance

• Commercial certifications: CE, FCC
• MIL-STD-461E/F/G compliance items: RE101 / RE102; CE101 / CE102; CS118; RS101 / RS103; CS101 / CS106 / CS109 / CS114 / CS115 / CS116 (EMI glass/touch optional)
• MIL-STD-810G/H test methods: Vibration Method 514.6; Humidity Method 507.5; Transit Drop Method 516.6

Accessories included (examples)

• 1 x Manual (hardcopy)
• 1 x Driver CD
• 1 x Power cord (MIL-DTL-38999/1)

Technical specifications

• Display: 24.0 inches; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; Active Area: 527.04 x 296.46 mm; Touch: Projected Capacitive Multi-Touch (PCAP)
• Processor: Intel Core i5-8265U 1.6 GHz (up to 3.9 GHz)
• Memory: 1 x SO-DIMM, DDR4 2400 MHz, 4 GB (default); optional 8 / 16 / 32 GB
• Storage: 1 x M.2 2242 B-key SSD 64 GB (default); up to 512 GB optional
• Ethernet: Intel I210-AT and Intel I219-LM
• OS: Windows 10 IoT Enterprise (optional)
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 to 50 °C
• Storage temperature: -10 to 60 °C
• IO ports: 2 x USB 3.2 Gen 1; 1 x RS232 (selectable RS422/485); 2 x RJ-45 LAN; 1 x HDMI (optional)
• Mechanical: 635.2 x 430.9 x 66 mm; Mounting: VESA (default), Rack mount (optional); Enclosure: metal housing with aluminum bezel
• Power: AC 100–240V (default); DC 9–36V isolated (optional)
• Control: 8-key OSD control pad (Power, Brightness -, Brightness +, Night, Day, Auto/Manual, Reset, Lock)
