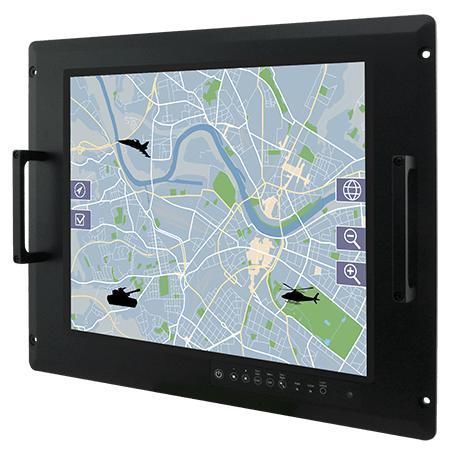

PCAP touchscreen panel PC R17IW3S-MLA1FP

multitouch screentouch screen17"

Product Overview
The R17IW3S-MLA1FP is a 17-inch defence console rack Panel PC designed for harsh military environments. Built to MIL-STD-810G and MIL-STD-461F standards, it features an anti-corrosion metal housing, fanless cooling and an 8U flush rack mount mechanical design suitable for command centers and control rooms.

Key Features

• Intel® Core™ i5-8265U 1.6 GHz (up to 3.9 GHz)
• Anti-corrosion housing and fanless design
• Projected Capacitive Multi-Touch (PCAP); optional PCAP with ITO film
• Compliant with MIL-STD-810G/H and MIL-STD-461E/F
• Flush rack / rack mount mechanical design (8U)
• On-screen display (OSD) control pad (8 keys)
• AC 100~240 V input (default); isolated DC 9~36 V optional
• Built-in ambient light sensor for auto brightness

Certifications

• MIL-STD-461E/F/G
• MIL-STD-810G/H
• CE
• FCC

Overview Details
Reliable computing tailored for defence applications
Winmate R17IW3S-MLA1FP units are manufactured and tested according to MIL-STD-810G environmental and MIL-STD-461F EMC standards and undergo internal reliability tests to ensure operation under vibration, shock, temperature and humidity extremes.

Command center focused design
Ergonomic console layout and an 8U rack-mount mechanical design enable integration into command consoles and control room racks with flush mounting for a compact footprint.

Defence-grade connectors for system compatibility
Standard MIL-DTL-38999 type I power connector; selected models offer MIL-DTL-38999 type III I/O connectors for high-performance cable-to-panel applications in mission-critical systems.

Touch experience and convenient OSD controls
Projected capacitive multi-touch display combined with a physical 8-key OSD control pad on the front panel for quick access to power, brightness, night/day, auto/manual, reset and lock functions.

Auto brightness control
Built-in ambient light sensor adjusts display brightness automatically to match environmental lighting conditions.

Technical specifications

• Model: R17IW3S-MLA1FP
• Display: 17.0 inches; Resolution 1280 x 1024; Brightness 350 nits; Contrast 1000:1; Viewing angles 85/85/80/80; Active area 337.920 x 270.336 mm
• Processor & Memory: Intel Core i5-8265U 1.6 GHz (up to 3.9 GHz); 1 x SO-DIMM DDR4 2400 MHz 4GB (default), options 8/16/32GB
• Storage: 1 x M.2 2242 B-key SSD 64GB (default) up to 512GB optional
• Ethernet: Intel I210-AT + I219-LM
• Operating conditions: Humidity 10%–95% RH; Operating temperature -20°C to 60°C; Storage -30°C to 70°C
• Compliance: MIL-STD-461E/F/G; MIL-STD-810G/H
• Mechanical: Dimensions 482.6 x 399.3 x 79.6 mm; Rack mount / VESA mount; Metal housing with aluminum bezel; Fanless
• IO: 2 x USB 3.2 Gen1; 1 x RS232 (default) / RS422 / RS485; 2 x RJ-45 LAN; HDMI optional
• Power: AC 100~240V ±10% (default); DC 9~36V ±10% (isolated optional)
• Accessories: 1 x Manual (hardcopy); 1 x Driver CD; 1 x Power cord (MIL-DTL-38999/1)
